Falling Weight Tube Type Powder Coating Paint Film Impact Tester

Brand Name : ZL

Model Number : ZL-3064

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,T/T,Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : Falling Weight Tube Type Powder Coating Paint Film Impact Tester is packaged within wooden case.

Name : Falling Weight Tube Type Powder Coating Paint Film Impact Tester

Maximum Impact Height : 50cm/100cm optional; The graduation value is 1cm

Weight Of Heavy Hammer : 1000g ± 1g

Punch (Steel Ball) Diameter : 8mm

Impact Mold Seat Inner Hole Diameter : 15mm ± 0.3mm

Curvature Radius Of Mold Base Edge : 2.5mm~3.0mm

Impact Depth : 2mm ± 0.1mm

Contact Now

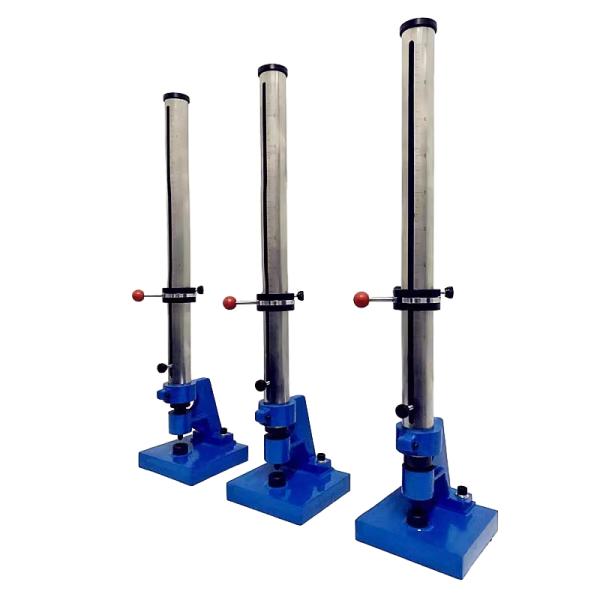

Falling Weight Tube Type Powder Coating Paint Film Impact Tester

This falling weight tube type powder coating paint film impact tester is a simple, economical, and practical solution for evaluating coating impact resistance on tinplate (thickness less than 0.3mm) or thin steel plate (thickness less than 0.55mm).

Equipment Overview

Designed according to GB/T 1732 standards, this impact tester features a specially processed oxidized graduated aluminum conduit that never rusts or fades, an 8mm diameter punch, a 1KG heavy hammer, and a stable base. The punch utilizes a specialized design that maintains integrity even under high-frequency intensive use.

Main Technical Parameters

Parameter	Specification
Maximum Impact Height	50cm/100cm optional; Graduation value: 1cm
Weight Of Heavy Hammer	1000g ± 1g
Punch (Steel Ball) Diameter	8mm
Impact Mold Seat Inner Hole Diameter	15mm ± 0.3mm
Curvature Radius Of Mold Base Edge	2.5mm~3.0mm
Impact Depth	2mm ± 0.1mm

Falling Weight Tube Type Powder Coating Paint Film Impact Tester

Product Tags:

Falling Weight Tube Type Impact Tester

Powder Coating Paint Film Impact Tester

Falling Weight Tube Type Powder Coating Paint Film Impact Tester Images
