LD 16 1 Twin Screw Laboratory Extrusion Pelletizer For Small Scale Production

Brand Name : ZL

Model Number : ZL-3017D

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Delivery Time : 15-20 work days

Packaging Details : Laboratory Mini Desktop Twin Screw Extruder Twin Screw Laboratory Extrusion Pelletizer will be packed in wooden case

Name : Laboratory Mini Desktop Twin Screw Extruder Twin Screw Laboratory Extrusion Pelletizer

Model : ZL-3017D

Screw diameter : Taper 16*2pcs

Designed output : 0.1-3KG/h

Extruder size : 0.7*0.2*0.5m

Weight : 50KG

Extrusion center height : 300MM

Motor power : 750W

LD : 16:1

Contact Now

LD 16:1 Twin Screw Laboratory Extrusion Pelletizer for Small Scale Production
This laboratory mini desktop twin screw extruder and pelletizer is designed for small-scale production and research applications, offering precision processing and reliable performance for material testing and development.
Equipment Overview
Product Performance Features
  • Professionally manufactured screws and barrel with high processing precision and quality assurance
  • Brand motor drive with stable and reliable screw speed control
  • Adjustable particle size and material thickness for complete plasticization and mixing
Applications
  • Material melting and plasticizing extrusion
  • Optimization of extrusion process parameters
  • Small-scale experimental lines for film, sheet, pipe, and pelletizing applications
Technical Specifications
Parameter Specification
Model ZL-3017D
Screw Diameter Taper 16*2pcs
Designed Output 0.1-3 KG/h
Extruder Size 0.7*0.2*0.5m
Weight 50kg
Extrusion Center Height 300mm
Extrusion Direction Right → out to the left
Motor Power 750W
Voltage 220V 50HZ [three-plug plug]
L/D Ratio 16:1
Heating Temperature Normal temperature - 350℃/450℃ [quotation subject]
Warming Time Normal temperature - 350 degrees/30min
Temperature Control Accuracy ±1℃
Temperature Fluctuation ±2.5℃
Cooling Method Three-zone air-cooled active zone cooling
Applicable Raw Materials PP, PC, PVC, ABS, PE, PA6, PS, PEI, PIMMA, POM, TPU, PTE, PEEK, etc.
Screw Barrel Material 38CrmoAl, Nitrided treatment
Space Occupied Length 1.5m * Width 500mm * Height 500mm [Extruder + air-cooling device + haul-off and pelletizing device]
Feeding area includes silent cooling device (air-cooled or water-cooled optional - offer subject to requirements).
LD 16 1 Twin Screw Laboratory Extrusion Pelletizer For Small Scale Production

Product Tags:

LD 16 1 Laboratory Extrusion Pelletizer



Twin Screw Laboratory Extrusion Pelletizer



Small Scale Production Laboratory Extrusion Pelletizer


Quality LD 16 1 Twin Screw Laboratory Extrusion Pelletizer For Small Scale Production for sale

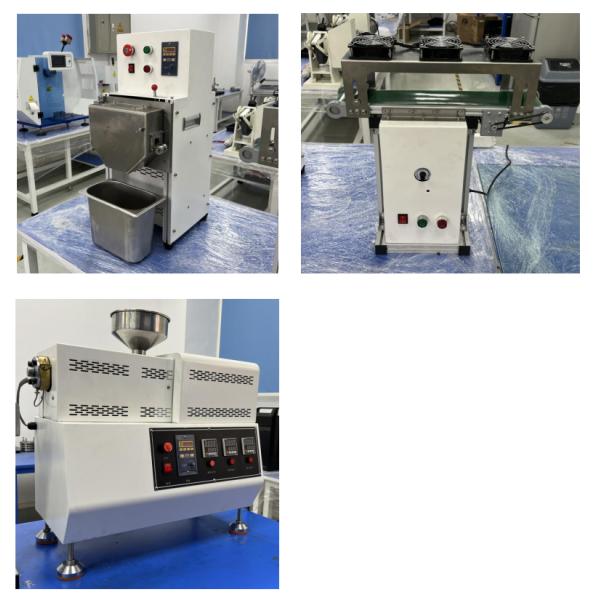

LD 16 1 Twin Screw Laboratory Extrusion Pelletizer For Small Scale Production Images
