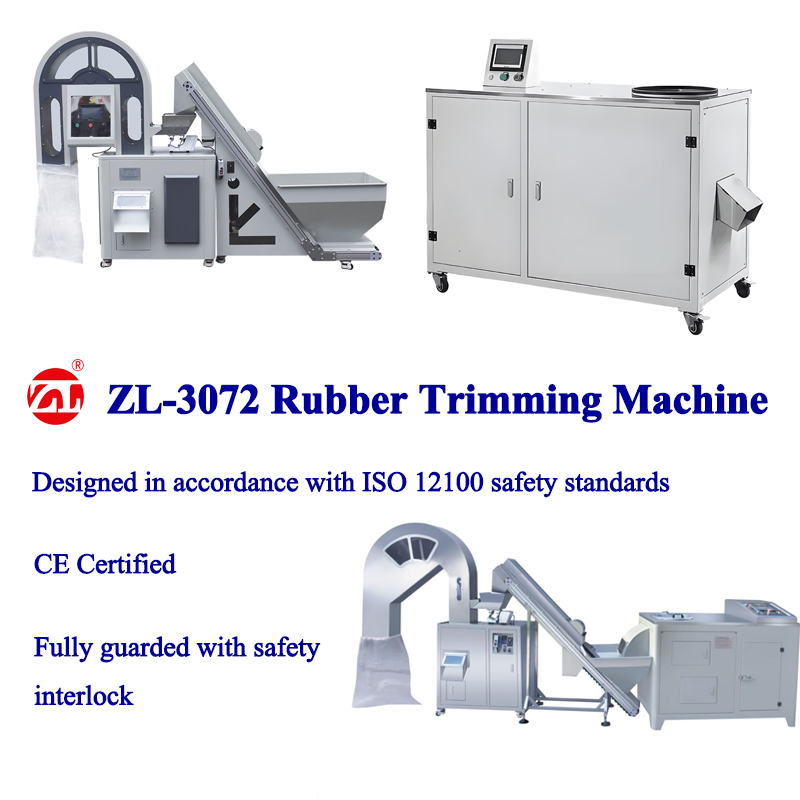

Rubber and Edge Separating Machine Automatic Rubber Deflashing Machine Rubber O Ring Burr Demolishing Machine

Model Number : ZL-3072B

Packaging Details : wooden case packaging

MOQ : 1 set

Delivery Time : 7-14 work days

Dimensions : Length 1500 + 420mm, Width 820mm, Height 1060 + 155mm

Brand Name : ZL

Payment Terms : T/T,L/C,D/A,D/P

Frame : Laser sheet metal

Capacity : Model 400 deflashing machine — 5 kg

Price : UDS2000-4000

Frame Exterior Panels : Sheet metal bending

Supply Ability : 60 Sets

Name : Integrated Rubber Deflashing and Air Separation Machine

Certification : CE,ISO

Working chamber : 304 stainless steel cold-pressed forming, external water cooling system, inner diameter 600mm

Place of Origin : Guangdong, China

Contact Now

Rubber and Edge Separating Machine Automatic Rubber Deflashing Machine
High-performance automatic deflashing and separation equipment for rubber and silicone products, featuring advanced cooling systems and intelligent controls.
Main Specifications
  • Self-priming water cooling system for working chamber and bearing housing
  • Built-in braking function for immediate cycle completion
  • Rapid automatic deflashing for rubber and silicone products
  • Intelligent switch control with Schneider, Omron, and Inovance components
  • Seamless sheet metal welding technology main frame
  • Variable frequency speed control with intelligent operation
  • Automatic lubrication and dust extraction systems
  • Power supply: 3-phase 4-wire 380V, 50Hz
Main Features
  • Working chamber diameter: 400mm, integrally formed by deep drawing
  • Built-in soundproof cotton for low noise operation
  • Strong negative pressure dust extraction with excellent separation
  • Comprehensive parameter design system
  • Working chamber made entirely of stainless steel 304
  • Dimensions: Length 1920mm, Width 820mm, Height 1215mm
  • Capacity: Model 400 deflashing machine — 5 kg
Configuration Details
Item Brand Specifications
Deflashing Machine Frame — CNC seamless sheet metal welding
PLC Main Unit Xinje DVP24ECR3, 24-point main unit, 12DI/12DO (relay), RS-232/RS-485
Frequency Converter Inovance MS300, 5.5kW heavy-duty rated output current 6A, normal load rated current 10.5A, built-in PLC
Switching Power Supply Omron Over-current and over-voltage protection, conversion efficiency above 85%, long service life
7-inch Touch Screen Weinview 7-inch true color TFT, resolution 800*480, 65,536 colors, multiple COM ports
Motor Shanghai Dedong YT112M-2, 11kW, 50Hz
Cylinder SNS SNS32*350
Solenoid Valve SNS 4V210-08-24V
Belt Gates (USA) With built-in cooling
Working Chamber Self-developed 304 stainless steel cold-pressed forming, external water cooling system, inner diameter 600mm
Dust Collection System High-power vacuum fan 750W/220V Independently developed by Zhongli
Bearing SKF6307C3 Service life over 6 months, max speed 8000 r/min
Air Separation Machine Functions
High-performance air blowing separation device for separating rubber products with different flash specific gravities. Features linear vibration conveying for uniform product flow and frequency-controlled air force adjustment based on product weight.
  • Rapid air blowing separation for rubber and silicone products
  • Intelligent switch control with Schneider electrical components and Omron frequency converter
  • Seamless sheet metal welding technology main frame
  • Variable frequency speed control with intelligent operation
  • Power supply: 50Hz, 220V
Main Components - Air Separation Machine
Content Main Details Material Origin Remarks
BASIC EQUIPMENT Equipment dimensions L3100mm * W700mm * H2100mm
Working Voltage 2-phase 220V, 2.2kW
Frame Laser sheet metal 304 stainless steel Zhongli Laser seamless welding
Frame Exterior Panels Sheet metal bending 304 stainless steel Zhongli Hydraulic bending
Feeding System Conical storage chamber 304 stainless steel China TIG welding technology
Linear vibrator 0.75kW China
Brush motor 16 N·m China Gear reduction motor
Air Duct System Medium-pressure fan China Multi-blade impeller, 2.2kW
Product separation duct Square type with observation window 304 stainless steel Zhongli Laser TIG welding
Waste separation duct Half-moon type with observation and diversion window 304 stainless steel Zhongli Laser TIG welding
Waste collection bag Mesh bag Reinforced nylon Zhongli
