Automatic Rubber Edge Grinding Machine for Rubber Edge Trimming Polishing

Model Number : ZL-3071

Rotating platform speed per degree : 0.5~3Sec

MOQ : 1 set

Delivery Time : 7-15 work days

Workpiece rotation speed : 0~240 rpm/min

Brand Name : ZL

Packaging Details : wooden case packaging

Payment Terms : T/T,D/P,D/A,L/C

Production cycle : 2.5~4 seconds

Grinding time : 2~6 seconds

Price : UDS2000-3000

Production capacity : length within 100mm, diameter within 95mm

Supply Ability : 60 Sets

Name : Automatic Edge Grinding Machine

Certification : CE,ISO

maximum output per shift : 2.4000 pieces. (8 hours)

Place of Origin : Guangdong, China

Contact Now

Automatic Rubber Edge Grinding Machine for Rubber Edge Trimming Polishing
Operating Conditions
  • Power supply: 380V±10%, three-phase four-wire system
  • Air source: ≥0.60Mpa, consumption 0.8m³/min
  • Ambient temperature: -10℃~+40℃
  • Relative humidity: Daily average up to 90%
Technical Parameters
  • Production cycle: 2.5~4 seconds (adjustable)
  • Production capacity: Up to 4000 pieces per 8-hour shift
  • Grinding time: 2~6 seconds (adjustable)
  • Workpiece rotation speed: 0~240 rpm/min (adjustable)
  • Rotating platform speed: 0.5~3 seconds per degree (adjustable)
  • Workpiece size range: Outer diameter 20~95mm, length 30~100mm
  • Voltage: 380V±10%
  • Grinding motor power: 0.75KW each (two motors total)
  • Equipment dimensions: 900mm × 1000mm × 1300mm
Standard Configuration
No. Product Name Quantity
1 Automatic edge grinding machine 1 set
2 Dusting machine 1 set
Consumables & Wearing Parts
No. Product Name Specification Quantity Replacement Frequency
1 Wire Brush Bore 30, Outer Diameter 150 2 pcs 3-7 days
2 Workwear Customized according to product bore 8 pieces per set Royalty-free
Production Process
  1. Preparing the bushing (adjusting sanding motor position)
  2. Manual loading to rotary disc station
  3. Automatic rotation of rotary disc
  4. First sanding (upper port of outer pipe)
  5. Second sanding (upper port of inner pipe)
  6. Manual turning of bushing
  7. Automatic rotation of rotary disc
  8. Second sanding (lower port of outer pipe)
  9. Second sanding (lower port of inner pipe)
  10. Replacement of product
Technical Performance

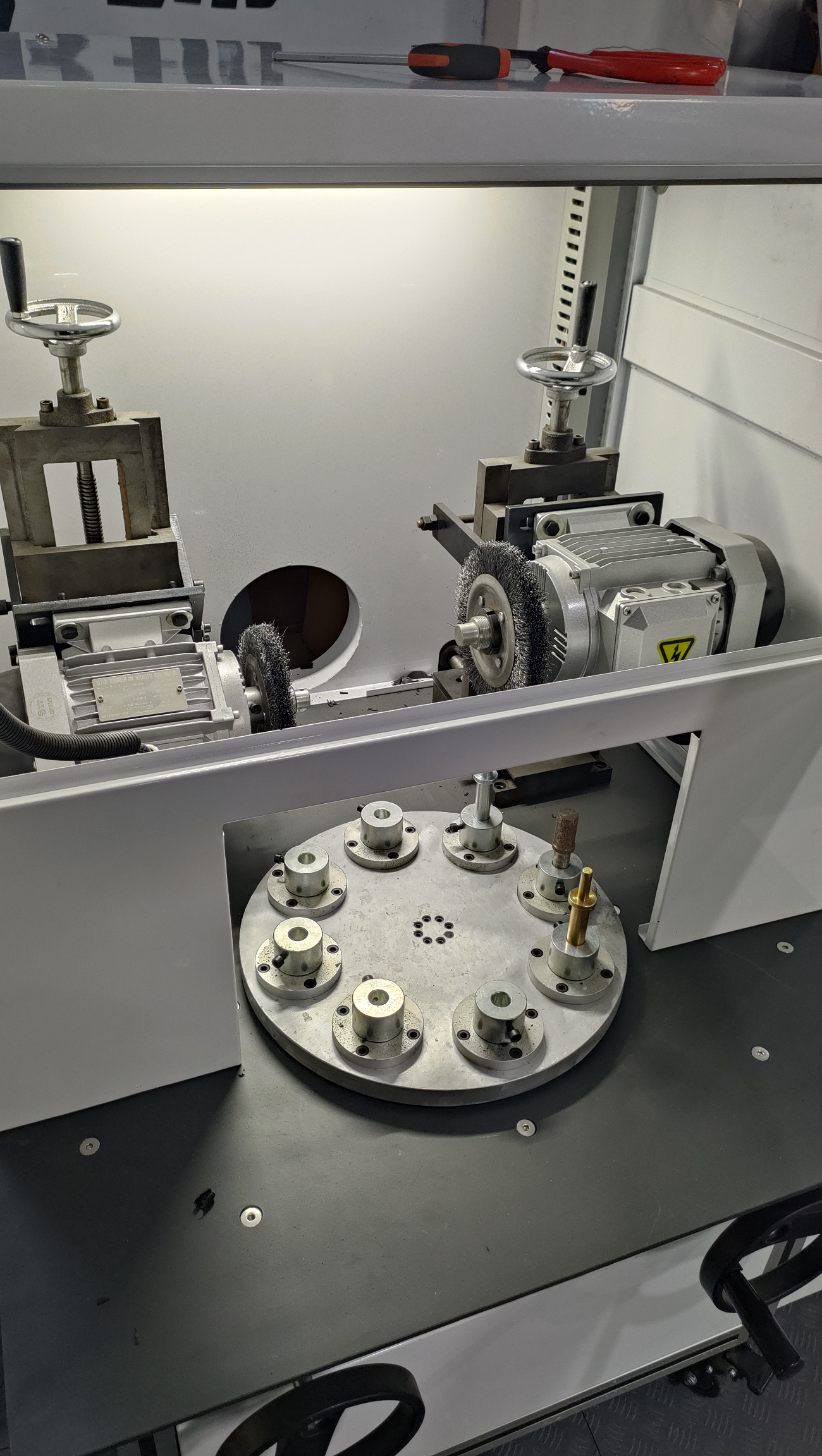

  • Composed of rotating platform, grinding system, control system, and dust removal system
  • 8 support rods on rotating platform with adjustable grinding motor for different product sizes
  • Platform uses servo motor and precision divider for precise indexing
  • Two grinding systems: one for outer pipe port, one for inner pipe port
  • Wire brush service life: 3-7 days
  • Waste material discharged into dust remover (clean every 1-2 days)
  • PLC programmable control system with touch screen interface
  • Adjustable parameters for different bushing requirements
Automatic Rubber Edge Grinding Machine for Rubber Edge Trimming Polishing
