IEC 61215 High-Intensity Metal Halide UV Aging Test Chamber

Model Number : ZL-6042

Brand Name : ZL

MOQ : 1

Delivery Time : 14 work days

Total Lamp Power : 4 kW

Effective Exposure Area : Approx. 500 mm × 500 mm

Certification : CE

Price : UDS13000

Spectral Wavelength & Irradiance Intensity : Spectral wavelength 300–400 nm (UVB + UVA); Irradiance intensity:100 W/m² ~ 250 W/m²

Payment Terms : Western Union,T/T,D/P,D/A,L/C

Exterior Dimensions : Approx. 1000 × 1100 × 1850 mm (W × D × H), subject to actual dimensions

Number of Lamps : 2 pieces

Supply Ability : 50

Interior Dimensions : 500 × 500 × 600 mm (W × D × H)

Place of Origin : China

Packaging Details : wooden case packaging

Contact Now

IEC 61215 High-Intensity Metal Halide UV Aging Test Chamber

Product Overview

This equipment utilizes metal halide lamps to replicate damaging light waves found in various environmental conditions, delivering reliable environmental simulation and accelerated testing for scientific research, product development, and quality control applications.

By exposing material specimens to the combined light and thermal radiation of xenon arc lamps, this chamber evaluates the light resistance and weatherability of materials under high-temperature light sources. It serves critical testing needs across multiple industries including automotive, paint, rubber, plastic, pigment, adhesive, fabric, aerospace, marine, electronics, and packaging.

The weathering test chamber supports new material selection, modification of existing materials, and assessment of durability changes resulting from material composition adjustments. It effectively simulates the degradation processes that occur when materials are exposed to sunlight under diverse environmental conditions.

Compliant Standard: IEC 61215

Technical Specifications

Parameter	Specification
Interior Dimensions	500 × 500 × 600 mm (W × D × H)
Exterior Dimensions	Approx. 1000 × 1100 × 1850 mm (W × D × H), subject to actual dimensions
Spectral Wavelength & Irradiance Intensity	Spectral wavelength 300-400 nm (UVB + UVA); Irradiance intensity: 100 W/m² ~ 250 W/m²
Effective Exposure Area	Approx. 500 mm × 500 mm
Number of Lamps	2 pieces
Total Lamp Power	4 kW
Lamp Service Life	Approx. 1,000 ~ 1,200 hours
Light Source Type	Metal halide lamp
Chamber Temperature Range	RT+10°C ~ 70°C
Black Standard Temperature Range	40°C ~ 100°C adjustable (light cycle); 25°C ~ 85°C (dark cycle)
Thermometer	Black Standard Thermometer (BST)
Irradiance Meter	Intelligent fully automatic irradiance compensation
Temperature Accuracy	±0.1°C
Temperature Fluctuation	±0.5°C
Temperature Deviation	±3°C
Humidity Range	30% ~ 98% RH (during dark cycle); 20% ~ 60% RH (during light cycle)
Humidity Accuracy	±1% RH
Humidity Fluctuation	±3% RH
Humidity Deviation	≤ ±5% RH
Light Cycle Time	Continuously adjustable from 1 second to 999 hours, 59 minutes, 59 seconds
Rain Cycle	Adjustable interval (intermittent) rain, 1-240 minutes
Spray Cycle	18 min / 102 min or 12 min / 48 min (spray time / non-spray time)
Spray Water Pressure	0.12 ~ 0.15 MPa
Spray Nozzle Aperture	Ф0.8 mm
Door Seal	Silicone rubber compression sealing device
Sample Rack Material	SUS304 stainless steel
Interior Chamber Material	SUS304 stainless steel
Exterior Chamber Material	Cold-rolled steel plate with paint finish

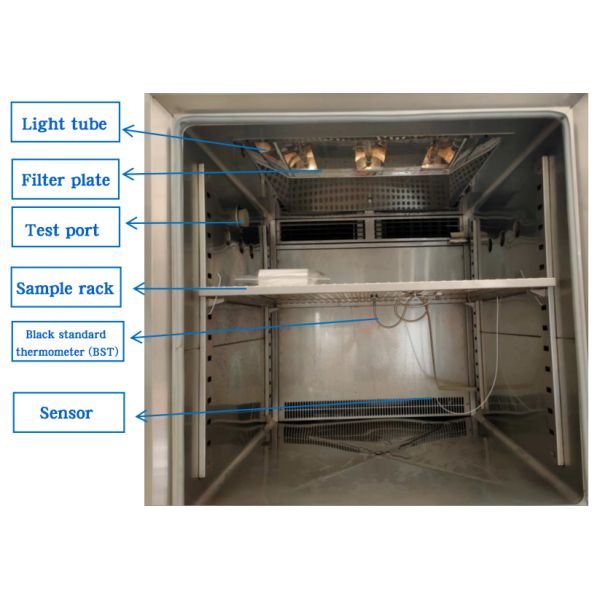

IEC 61215 High-Intensity Metal Halide UV Aging Test Chamber Images
