EN 388 EN13594 EN1621 Safety Gloves Impact Testing Machine

Model Number : ZL-3043B

Impact energy : 0-25J, adjustable via test height.

Brand Name : ZL

MOQ : 1

Delivery Time : 14 work days

Impact height : 0-500mm, adjustable by user.

Price : UDS4000

Support anvil : Material 45# steel, height 180±30mm, top spherical with radius 100±1mm.

Sensor : Dynamic force sensor, measuring range 0-20000N, frequency 10kHz, accuracy 1.5%

Certification : CE

Packaging Details : wooden case packaging

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Impact hammer : Material 45# steel, mass 2.5±0.01kg, impact surface circular, φ80±2mm.

Data system : Sampling frequency 10kHz, sampling time 50ms, lower acquisition limit 500N, accurate to 1N.

Supply Ability : 50

Name : Safety Gloves Impact Testing Machine

Place of Origin : China

Contact Now

EN 388 EN13594 EN1621 Safety Gloves Impact Testing Machine

Product Overview

Manufactured in accordance with relevant standards, this testing machine is primarily used for impact resistance testing of mechanical hazard protective gloves. It is widely utilized in special labor protective equipment supervision and inspection stations, safety production science research institutes, product quality inspection institutes, glove manufacturers, and user organizations.

Key Features

The overall control system adopts a PLC touch screen control structure. All related operations can be completed via the touch screen
The dynamic force sensor utilizes US PCB ICP technology sensor, offering high accuracy
The touch screen automatically displays and locks the maximum dynamic force value
The calibration sensitivity of the dynamic sensor can be input via the touch screen, facilitating easy calibration
Height is automatically acquired and processed using an encoder. The touch screen allows setting and real-time display of height; lifting stops automatically when the set height is reached
The impact hammer lifting and release parts adopt a guide rail structure to ensure smooth dropping
The release device employs pneumatic release, with an audible alarm before release

Technical Specifications

Component	Specifications
Impact Hammer	Material 45# steel, mass 2.5±0.01kg, impact surface circular, φ80±2mm
Support Anvil	Material 45# steel, height 180±30mm, top spherical with radius 100±1mm
Sensor	Dynamic force sensor, measuring range 0-20000N, frequency 10kHz, accuracy 1.5%
Data System	Sampling frequency 10kHz, sampling time 50ms, lower acquisition limit 500N, accurate to 1N
Impact Height	0-500mm, adjustable by user
Impact Energy	0-25J, adjustable via test height
Power Supply	AC220V, 50Hz

Applicable Standards

EN 388
GB24541-2022 "Hand Protection - Mechanical Hazard Protective Gloves"

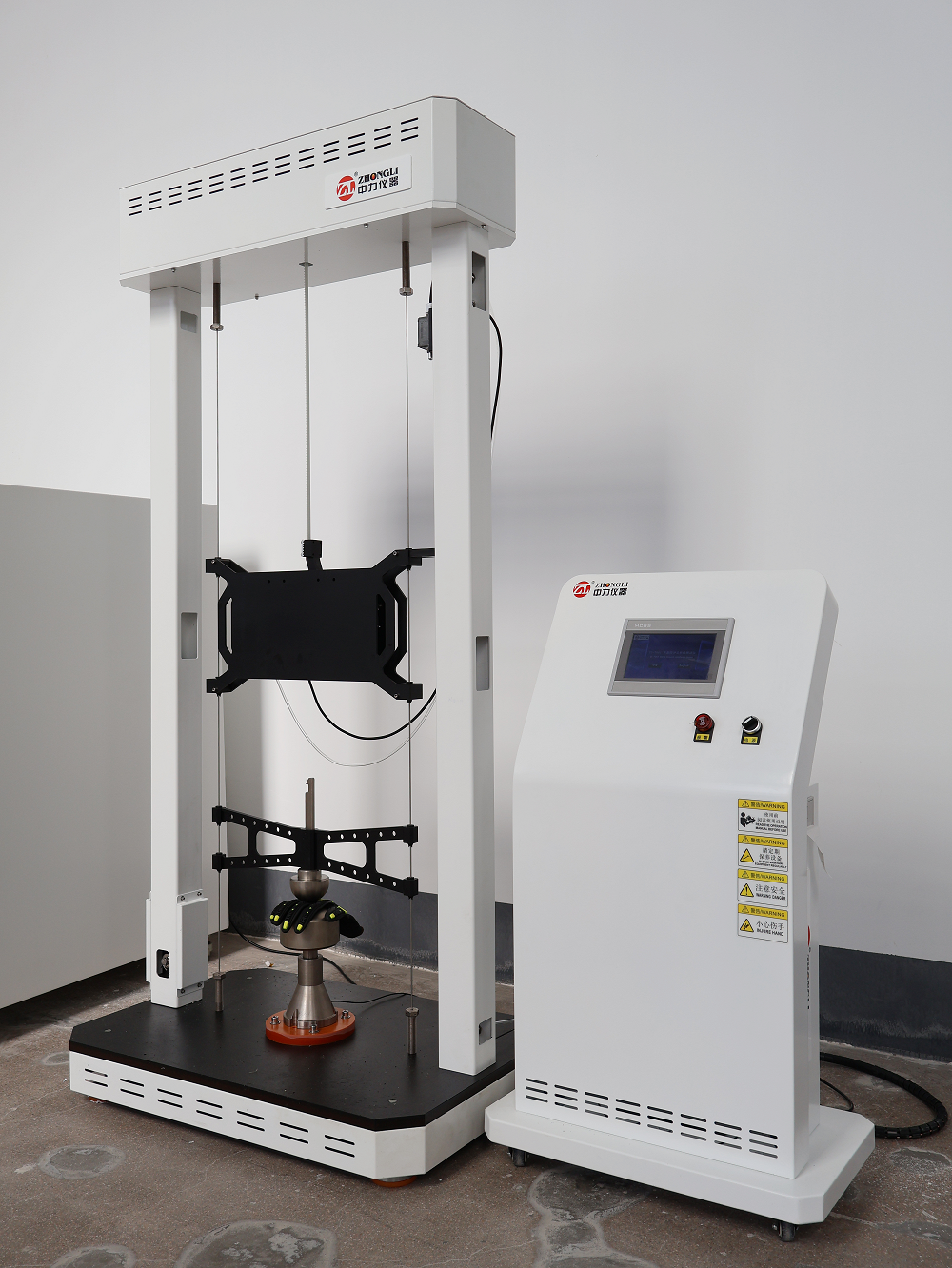

EN 388 EN13594 EN1621 Safety Gloves Impact Testing Machine Images
