Sponge Indentation Force Deflection IFD Hardness Tester | ISO2439 ASTM D3574 Foam Compression Strength Testing Machine

Payment Terms : T/T,D/P,D/A,L/C

Test speed : 100±20mm/min

Model Number : ZL-2010

Capacity : 200kg

MOQ : 1 set

Delivery Time : 5-10 work days

Lower platform : 420×420mm

Packaging Details : wooden case packaging

Price : UDS2000

Maximum stroke : 100mm

Supply Ability : 50 sets

Certification : CE,ISO

Unit switching : Kg, N, LB

Brand Name : ZL

Name : Sponge Indentation Force Deflection IFD Hardness Tester

Place of Origin : China

Upper platen : diameter 200mm, bottom rounded corner R1mm

Contact Now

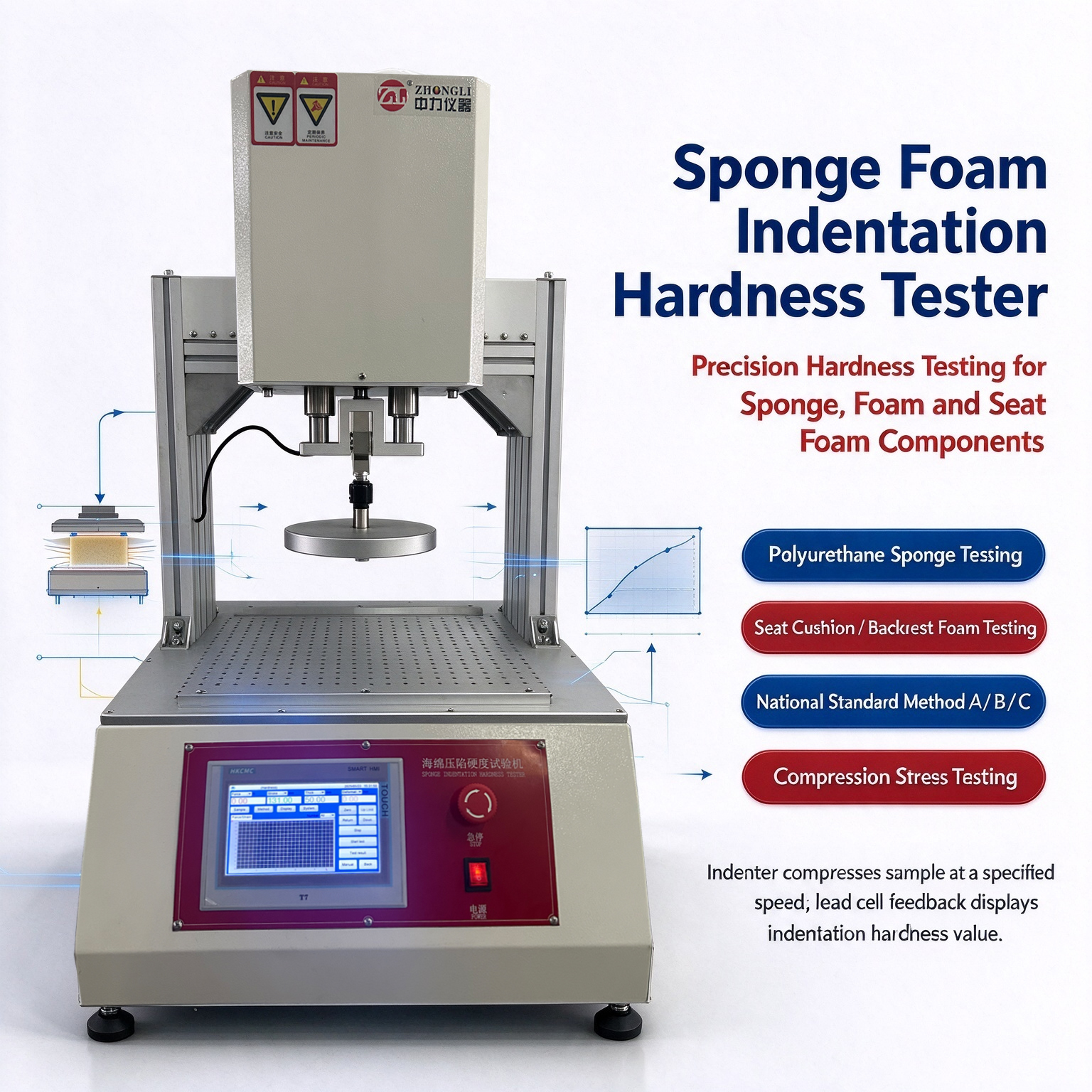

Sponge Indentation Force Deflection IFD Hardness Tester

Product Overview

This ISO2439 ASTM D3574 compliant foam compression strength testing machine measures the hardness of sponge and foam materials, providing precise quality control for various industrial applications.

Applications

Testing softness and hardness of sponge and foam materials
Quality verification for sofa and car seat cushioning
Evaluation of polyurethane sponges and automotive foam components
Compliance testing against national and international standards

How It Works

The testing process simulates pressing into foam materials to measure their resistance and hardness characteristics:

Sample Placement: Foam sample is positioned between the machine's upper and lower platens
Compression: Upper platen presses down at standardized speed to specified depth (Methods A, B, or C per standards)
Measurement: Load cell sensor detects pressure and transmits data to controller
Results: Indentation hardness value displayed on screen for analysis

In essence: Position the foam, apply compression, and receive precise hardness measurements to verify compliance with required specifications.
