Small Appliance Stability Test Stand Adjustable Angle 0 ~ 30°

Brand Name : ZL

Model Number : ZL-3418

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 set / month

Delivery Time : 4-7 work days

Packaging Details : Small appliance stability test stand is packaged within wooden case

Product name : Small appliance stability test stand

Model : Zl-wd1 Zl-wd2 zl-wd2d zl-wd3 zl-wd3d

The speed of revolution : 1 revolution /min

Angle of inclination : 0 ~ 30 ± 1 °

Rotating way : Manual/Electric

Mesa diameter : 600mm-1000mm

Contact Now

Small Appliance Stability Test Stand Adjustable Angle 0 ~ 30°

Product Overview

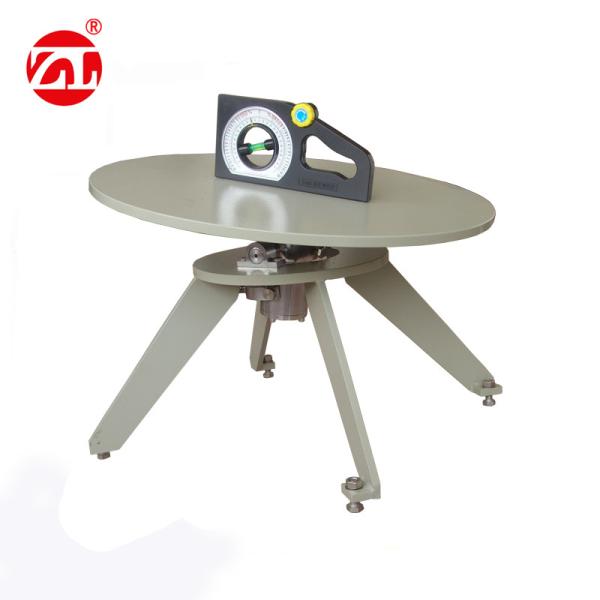

This stability test stand is designed in accordance with GB4706-1:20.1 and IEC60335-1 standards. It is specifically engineered for testing the stability of home appliances that operate on surfaces. The device consists of a work surface and angle adjuster, featuring an adjustable angle range of 0 ~ 30°.

Customization available: Can be customized to meet UL standards with an angle range of 0 ~ 42°.

Technical Parameters

Model	Zl-wd1	Zl-wd2	Zl-wd2d	Zl-wd3	Zl-wd3d
Mesa Diameter	600mm	800mm	800mm	1000mm	1000mm
Rotating Way	Manual	Manual	Electric	Manual	Electric
Speed of Revolution	-	-	1 revolution/min	-	1 revolution/min
Angle of Inclination	0 ~ 30 ± 1°	0 ~ 30 ± 1°	0 ~ 30 ± 1°	0 ~ 30 ± 1°	0 ~ 30 ± 1°
Weight Bearing Capacity	< 50kg	< 120kg	< 120kg	< 150kg	< 150kg

All models feature precise angle adjustment with ±1° accuracy for reliable stability testing.
