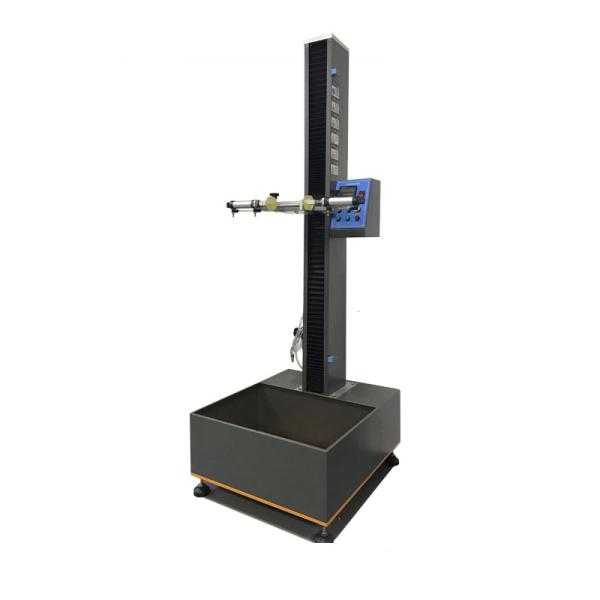

IEC62133 Compliant Battery Drop Test Machine with Adjustable Drop Height and Pneumatic Fixture for Mobile Phone Testing

Brand Name : ZL

Model Number : ZL-3201

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,T/T,Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : Battery Drop Test Machine , Pneumatic Free Fall Tester For Mobile Phone is packaged within wooden case.

Product name : Battery Drop Test Machine

Max. weight of the specimen : 2kg ± 100g

Drop height : 400 ~ 1500mm (adjustable)

Drop height gauge : Accuracy 1mm

Holding way : pneumatic fixture

Drop floor media : acrylic board, stainless steel (customer-owned)

Fall mode : free fall

Floor size : 560x410mm

The use of pressure : 0.4 MPa

Machine size : 700x900x1650mm

Contact Now

IEC62133 Battery Drop Test Machine, Pneumatic Free Fall Tester For Mobile Phone

Product Overview

This machine is designed for free falling tests of small consumer electronic products and components including mobile phones, walkie-talkies, electronic dictionaries, intercom systems, and CD/MD/MP3 players. The equipment features a pneumatic structure with specialized adjustable fixtures. When the drop button is pressed, the cylinder releases, allowing the specimen to undergo free fall testing. Drop height is adjustable from 400mm to 1500mm, with reliable key components and multiple drop floor options available.

Download Technical Specifications (PDF)

Compliance Standards

GB/T 31485-2015
GB/T 31241-2014
UN38.3
IEC62133
QC/T743-201X
GB/T 8897.4-2008

Technical Parameters

Maximum Specimen Weight	2kg ± 100g
Drop Height Range	400 ~ 1500mm (adjustable)
Drop Height Gauge Accuracy	1mm
Holding Method	Pneumatic Fixture
Drop Floor Media	Acrylic Board, Stainless Steel (customer-owned)
Fall Mode	Free Fall
Floor Size	560x410mm
Operating Pressure	0.4 MPa
Machine Dimensions	700x900x1650mm
Weight	80kg
Power Supply	1∮, 220V, 3A
