T 0625-2011 NDJ-1F Brookfield Viscosity Meter With RS232 Interface

Product name : T 0625-2011 NDJ-1F Brookfield Viscosity Meter with RS232 Interface

Measurement error : ±1% (F•S); (If you select the No.30 spindle, it will be ±3% (F•S)

Temperature control range : 45 ℃～200 ℃

Temperature control accuracy : ±0.1 ℃

Sample cylinder : 20 ml

Print output : Needle printer

Power supply : AC 220V±10%, 50 Hz

Key words : Brookfield

Brand Name : ZL

Model Number : ZL-1304

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : T 0625-2011 NDJ-1F Brookfield Viscosity Meter with RS232 Interface is packaged within wooden case.

Contact Now

T 0625-2011 NDJ-1F Brookfield Viscosity Meter With RS232 Interface
Product Overview

The T 0625-2011 NDJ-1F Brookfield Viscosity Meter with RS232 Interface is designed and manufactured in accordance with T 0625-2011 "Asphalt Brookfield Rotational Viscosity Test (Brookfield Viscometer Method)" from the Industry Standard of People's Republic of China JTG E20-2011 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering. This instrument is suitable for determining absolute viscosity of Newtonian liquids and apparent viscosity of Non-Newtonian liquids, making it ideal for viscosity measurement of asphalt, hot melt adhesive, paraffin, high polymers, and various fluids.

Technical Features
  • Advanced mechanical design technology and manufacturing process with micro-computer technology for speed control, data collection, and processing
  • Accurate data acquisition, high sensitivity, reliable test results, user-friendly operation, and attractive design
  • White backlight LCD display with high brightness, directly showing sample viscosity, rotor number, speed, and other information
  • Real-time data display on screen with printer output capability and RS232 communication port for PC connectivity
  • Multiple model options available for different measurement ranges to accommodate various sample types
Technical Specifications
Measurement Range 25 mPa•s～1×10⁷ mPa•s (With No.30 spindle: up to 2×10⁷ mPa•s)
Rotor Specifications No.21, 27, 28 and 29 total 4 pieces of spindles (No.30 spindle optional)
Measurement Error ±1% (F•S); With No.30 spindle: ±3% (F•S)
Temperature Control Range 45 ℃～200 ℃
Temperature Control Accuracy ±0.1 ℃
Sample Cylinder 20 ml
Print Output Needle printer
PC Communication RS232 interface
Power Supply AC 220V±10%, 50 Hz
Ambient Temperature 5 ℃～35 ℃ (When controlling temperature is close to ambient temperature, run air conditioner to maintain ambient temperature 5 ℃ lower than controlling temperature)
Relative Humidity ≤80%
Product Images

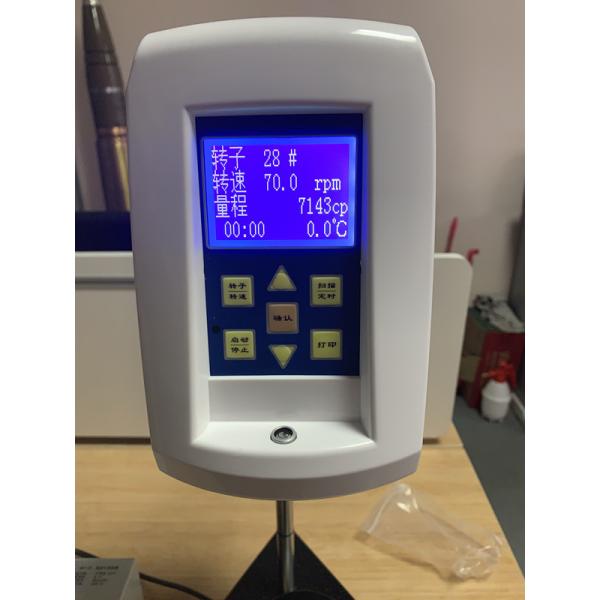

T 0625-2011 NDJ-1F Brookfield Viscosity Meter With RS232 Interface T 0625-2011 NDJ-1F Brookfield Viscosity Meter With RS232 Interface
