Water Permeability Hydrostatic Head Tester With Hydraulic Pressure 60kg

Power source : AC 220V±10% 50HZ 200W

External dimension : 560*400*600mm

weight : 60kg

Testing range : i5-500kpa

Water tank lifting speed : 1kpa-100kpa

Area of specimen gripholder : 8cm2 / 100cm2

Brand Name : Zhongli

Model Number : ZL-5016

Certification : ISO,CE

Place of Origin : Guangdong,China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 5 days after the order confirmed

Packaging Details : Packaged in wooden case （ Fumigation free ）

Contact Now

Water Permeability Hydrostatic Head Tester With Hydraulic Pressure 60kg
Product Overview

Digital Fabric Water Permeability Hydraulic Pressure Testing Machine designed for precise measurement of water resistance in various textile materials.

Applications

This tester is used for evaluating water permeability of compact fabrics including:

  • Canvas
  • Coated fabrics
  • Cover cloth
  • Rainproof clothing fabrics
  • Geotextile materials
Testing Modes
  • Turbocharged
  • Constant pressure time
  • Constant pressure regularly
  • Flexing resistance relaxation method
  • Leakage water method
Technical Specifications
Model Testing Range Water Tank Lifting Speed Area of Specimen Gripholder
-5 500pa-50kpa 1kpa-20kpa 100cm²
-20 500pa-200kpa 1kpa-30kpa -
-50 5kpa-500kpa 1kpa-100kpa 8cm²
-100 Custom-made
Instrument Features
  • Computer program-controlled with LCD Chinese menu
  • Built-in five sets of measurement modes
  • Built-in water tank design with original water rate balance system
  • Stable and accurate lifting speed
  • Pneumatic clamp system
Technical Parameters
Power Source AC 220V±10% 50HZ 200W
External Dimension 560×400×600mm
Weight 60kg

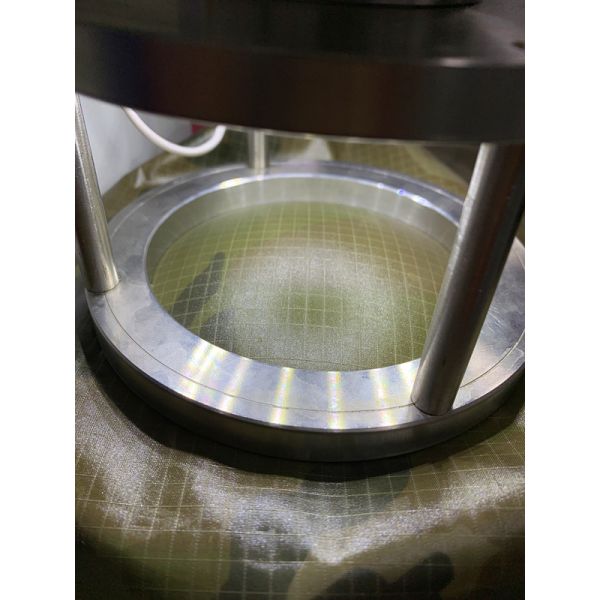

Product Image
Water Permeability Hydrostatic Head Tester With Hydraulic Pressure 60kg
