Good Repeatability / Versatile Instrument Digital Fabric Tearing Tester

Brand Name : ZL

Model Number : ZL-5005

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 SET

Price : Negotiable

Payment Terms : Eegotiable

Supply Ability : 60 sets / month

Delivery Time : 5-8 work days

Packaging Details : Digital Fabric Tearing Tester is packaged within wooden case.

Product name : Digital Fabric Tearing Tester

Measuring range : 0 ~ 16N, 32N, 64N

Measurement accuracy : ≤ ± 0.2% F · S

The measurement units : N, cN, gf, lbf

The sample holder : Pneumatic clamping (gas pressure: 0.6 ~ 0.8MPa)

Incision length : 20mm ± 0.1mm

Weight : 55kg

Power supply : AC220V 50Hz 100W

Contact Now

Good Repeatability / Versatile Instrument Digital Fabric Tearing Tester

The YG033B is a powerful, versatile instrument that has been extensively redesigned with a modern look and a host of new features to excel in value, accuracy, safety and flexibility. The product is used for the determination of tearing strength of all kinds of woven fabrics. It can also be used to measure the tearing strength of paper, plastic cloth, film, electrical tape, foil and other materials.

Compliance Standards

Textiles: GB/T 3917.1, ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17, NF G07-149

Paper: GB/T 455, APPITA P 400, ASTM D 689, BS 4468, CSA D9, DIN 53128, EN 21974, ISO 1974, JIS P 8116, PAPTAC D9, SCAN P11, TAPPI T414, UNI 6444

Plastics: GB/T 11999, ASTM D1922, ISO 6383-2, JIS K 7128-2, NF T54 141

Nonwovens: ASTM D5734, WSP 100.1

Instrument Features

Advanced calculation method (potential law calculation), to ensure accurate testing and good repeatability
Micro-control system, automatic testing, calculation, analysis of results, print test reports, upload test data
User-friendly control system, Chinese and English user interface, easy to operate, all buttons for the function of soft keys, simple and clear control panel
Free access to all the data within the host and statistical results
The test unit can choose between N, cN, gf and lbf and automatically convert to adapt to different standards
Pneumatic sample holder and pendulum release, to ensure that the clamping force is consistent, and can reduce the operating strength
Automatically cut the specimen to ensure that the shape of the incision, and can reduce the operating strength

Technical Parameters

Parameter	Specification
Measuring range	0 ~ 16N, 32N, 64N
Measurement accuracy	≤ ± 0.2% F * S
Measurement units	N, cN, gf, lbf
Sample holder	Pneumatic clamping (gas pressure: 0.6 ~ 0.8MPa)
Incision length	20mm ± 0.1mm
Clamp mouth distance	2.8mm ± 0.3mm
Dimensions	480 × 330 × 630mm
Weight	55kg
Power supply	AC220V 50Hz 100W

Good Repeatability / Versatile Instrument Digital Fabric Tearing Tester

Product Tags:

abrasion resistance testing machine

yarn twist tester

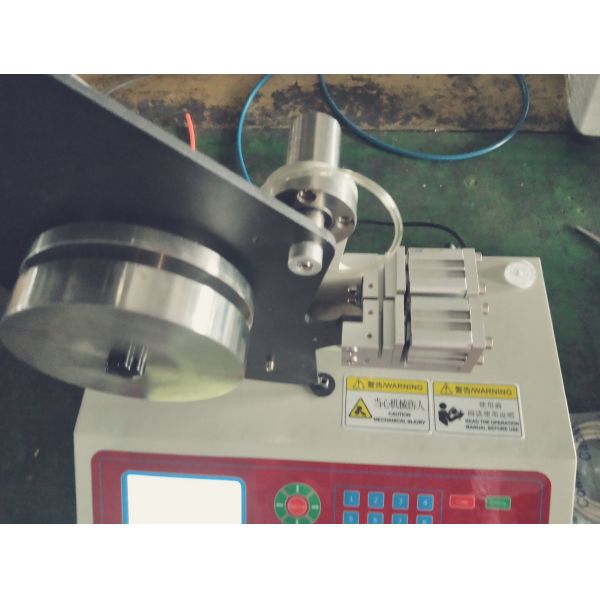

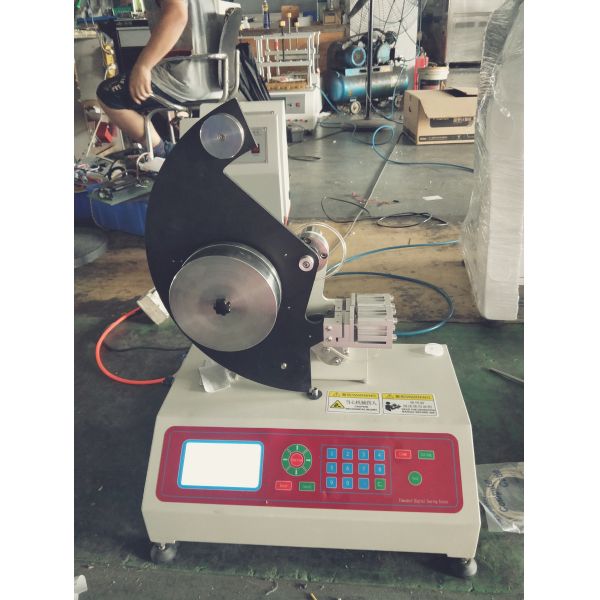

Good Repeatability / Versatile Instrument Digital Fabric Tearing Tester Images
