Public Places Small and Medium - Size Station Security X-Ray Inspection Machine

Conveyor speed : 0.22m/s

Brand Name : ZL

Model Number : ZL-4006B

Certification : ISO

Place of Origin : CHINA

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C,T/T,Western Union

Supply Ability : 30 Set/Month

Delivery Time : 4-8 work days

Packaging Details : Small and Medium-Sized Station Security Inspection Machine for Customs , Terminals , Stations is packed in a polybag, then packed as export safety wooden case

Product name : Public Places Small and Medium - Size Station Security X-Ray Inspection Machine

Operating temperature / humidity : 0 ° C ~ 45 ° C / 20% ~ 95% (non-condensing)

Channel size : 800 (width) × 650 (height) mm

Penetration force : 43mm

Storage temperature / humidity : -20 ° C ~ 60 ° C / 20% ~ 95% (non-condensing)

Tube current : 0.4~1.25mA (adjustable)

Appearance size : 2780*1110*1540mm

Contact Now

\n
\n

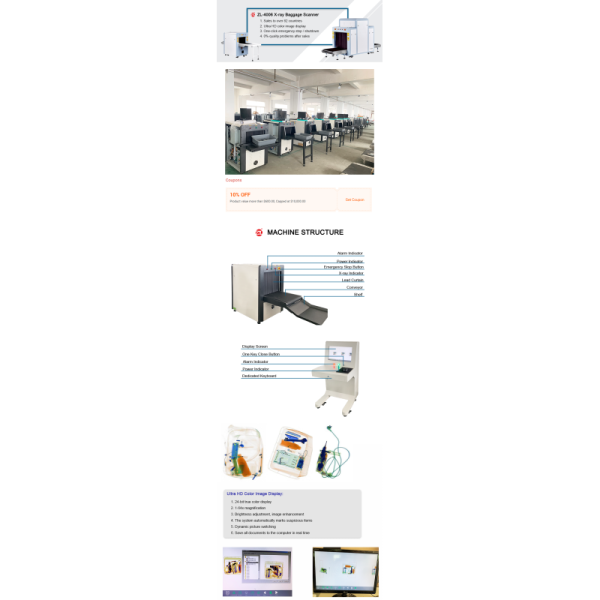

Public Places Small and Medium-Size Station Security X-Ray Inspection Machine
\n
Small and medium-sized station security inspection machine designed for customs, terminals, and stations with advanced imaging technology for comprehensive security screening.
\n
Basic Parameters
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
ParameterSpecification
Channel Size800 * 650 mm (Width * Height)
Appearance Size2780 * 1110 * 1540 mm
Conveyor Speed0.22 m/s
Conveyor Belt Rated Load200 kg
Resolution Diameter0.0787 mm metal wire
Penetration Force43 mm steel plate
Conveyor Belt Height from Ground620 mm
DisplayBenQ 17-inch LCD display
Image Storage500G hard disk, saves any image in real time, stores over 100,000 images
Noise Level< 55 dB(A)
Operating Systemcompatible operating system
Single-Check DoseX-ray source single-inspection exposure \u2264 1.5 \u03bcGy
Film SafetyFor ISO1600 Film Safety
Leakage Dose< 0.05 \u03bcGy/H at 5 cm from device surface
\n
X-Ray Generator Specifications
\n
    \n
  • Beam Direction: Adjustable
    • \n
  • Tube Current: 0.4~1.25 mA (adjustable)
    • \n
  • Tube Voltage: 100-160 KV (adjustable)
    • \n
  • Beam Divergence Angle: 90\u00b0
    • \n
  • Cooling / Duty Cycle: Sealed oil cooling / 100%
    • \n
\n
Image Processing System Features
\n
    \n
  • X-ray Sensor: L-shaped photodiode array detector (multi-energy), 12-bit depth
    • \n
  • Display: High resolution 19-inch LCD display
    • \n
  • Color Image Display: 24-bit true color display by material type
    • \n
  • Edge Enhancement: Super image enhancement for clearer image details
    • \n
  • High Penetration Display: Improves contrast in bright areas
    • \n
  • Low Penetration Display: Improves contrast in dark areas
    • \n
  • Magnifying Glass: Partial zoom function with real-time dynamic zoom
    • \n
  • Brighten/Darken: Adjusts image brightness levels
    • \n
  • Image Pull Back/Pull Forward: Display first 20 images with processing capability
    • \n
  • Image Restoration: Returns image display to original state
    • \n
  • Image Storage: Real-time saving with continuous processing capability
    • \n
  • Multi-Energy Color: Organic material (orange), inorganic (blue), mixture (green)
    • \n
  • High Energy / Low Energy: Assisted detection for drugs and explosives
    • \n
\n
Environmental Specifications
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
ParameterSpecification
Operating Temperature/HumidityStandard operating range
Storage Temperature/Humidity-20\u00b0C to 60\u00b0C / 20% to 95% (non-condensing)
Working Voltage220VAC (\u00b110%) 50\u00b13 Hz
Power Consumption1.0 KW (maximum)
Noise Level< 55 dB
