Airport Security X Ray Detector , Station Security Inspection Machine 3D Metal Detector

Brand Name : ZL

Model Number : ZL-4006B

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : US $6000~9000/set

Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P

Supply Ability : 100 sets per month

Delivery Time : 7~10 days

Packaging Details : Airport Security X Ray Detector , Station Security Inspection Machine 3D Metal Detector is Packed in a polybag, then packed as export safety wooden case

Product name : Station Security Inspection Machine

Channel size : 800 (width) × 650 (height) mm

Appearance size : 2780*1110*1540mm

Conveyor speed : 0.22m/s

Conveyor belt rated load : 200kg

Resolution diameter : 0.0787 mm metal wire

Penetration force : 43mm steel plate

Noise level : < 55dB(A)

Operating system : windowsXP

Contact Now

\n
\n
Airport Security X Ray Detector, Station Security Inspection Machine 3D Metal Detector
\n
\n
Product Introduction
\n

Designed for roads, railways, customs, terminals, stations and public places, this security inspection machine features strict internal quality control, implementation of engineering and production double inspection principles, complete machine component safeguards, and high-performance network functions. Certified by the Ministry of Public Security, CE certified, internationally recognized company ISO9001 certification, and passed ISO14001 environmental certification.

\n
\n
\n
Key Features
\n
    \n
  • International brand-name accessories: US SPELLMAN source, Japan HAMMATSU detector, Germany INTERROLL roller
    • \n
  • Energy-saving design: Automatically senses objects - starts running when luggage is placed, remains stationary when no luggage is present
    • \n
  • One-button shutdown control: Simple key rotation for safe automatic shutdown, reducing equipment failure
    • \n
  • Environmentally friendly design: Lead curtain with protective film prevents contact with lead and avoids lead pollution
    • \n
  • Dynamic screen switching: Screen can be switched when stationary or during dynamic operation
    • \n
\n
\n
\n
Product Specifications
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
Channel size800 (width) \u00d7 650 (height) mm
Appearance size2780 \u00d7 1110 \u00d7 1540 mm
Conveyor speed0.22 m/s
Conveyor belt rated load200 kg
Resolution diameter0.0787 mm metal wire
Conveyor belt height from ground620 mm
Display17in LCD display (BenQ)
Image storage500G hard disk - saves any image in real time, stores over 100,000 images with continuous processing and saving capability
Noise level< 55 dB(A)
Operating systemcompatible operating system
\n
\n
\n
Safety Specifications
\n
    \n
  • Single-check dose X-ray source single-inspection exposure: \u22641.5 \u03bcGy
    • \n
  • Film Safety: For ISO1600 Film Safety
    • \n
  • Leakage dose: 5 cm away from outer surface, exposure rate of leaking rays < 0.05 \u03bcGy/H
    • \n
\n
\n
\n
X-ray Generator
\n
    \n
  • Beam direction: Adjustable
    • \n
  • Tube current: 0.4~1.25 mA (adjustable)
    • \n
  • Tube voltage: 100-160 KV (adjustable)
    • \n
  • Beam divergence angle: 90\u00b0
    • \n
  • Cooling / duty cycle: Sealed oil cooling / 100%
    • \n
\n
\n
\n

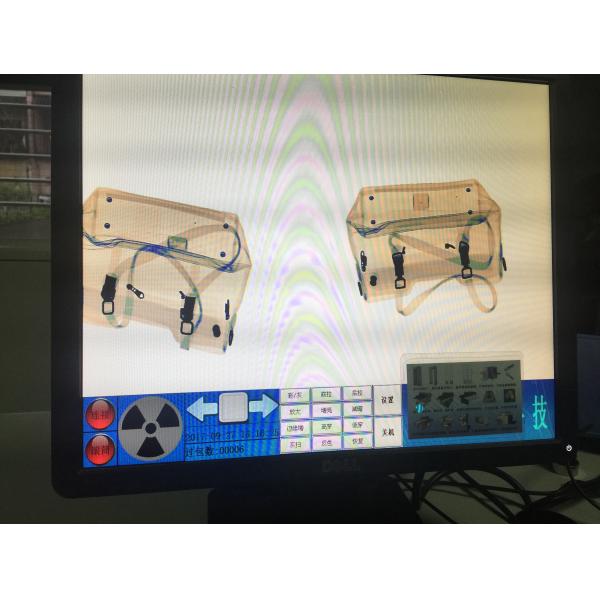

Image Processing System
\n
    \n
  • X-ray sensor: L-shaped photodiode array detector (multi-energy), 12-bit depth
    • \n
  • Display: High resolution 19 inch LCD display
    • \n
  • Color image display: 24-bit true color display according to material
    • \n
  • Edge enhancement and super image enhancement for clearer image details
    • \n
  • High penetration display improves contrast in bright areas
    • \n
  • Low penetration display improves contrast in dark areas
    • \n
  • Magnifying glass with partial zoom function and real-time dynamic zoom
    • \n
  • Brighten/dark increase functionality
    • \n
  • Image pull back/pull forward with 20-image history and processing capability
    • \n
  • Image restoration to original state
    • \n
  • Continuous image storage and processing
    • \n
  • Multi-energy color: Organic matter (orange), inorganic (blue), mixture (green)
    • \n
  • High energy / low energy modes
    • \n
  • Assisted detection of material explosives for enhanced dangerous goods detection
    • \n
\n
\n
\n
Operating Environment
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
Operating temperature / humidity0\u00b0C ~ 45\u00b0C / 20% ~ 95% (non-condensing)
Storage temperature / humidity-20\u00b0C ~ 60\u00b0C / 20% ~ 95% (non-condensing)
Working voltage220VAC (\u00b110%) 50\u00b13HZ
Power loss1.0KW (maximum)
Noise level<55 dB
