Digital I/O Portable Folding Security Metal Detection Door High - Brightness LCD

Product name : Portable Folding Security Metal Detection Door

Operating voltage : AC 100v-240v power consumption: <10W

The design conforms to the standard : FAA, nilecj-0601.00

Machine weight : 50kg

Temperature : -20c to + 70c (-4f to + 158f)

Relative humidity : 95%

Protection grade : IP55 uv protection

Channel size : 2150mm*810mm*600mm(height * width * depth)

Brand Name : ZL

Model Number : ZL-4020

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 sets / month

Delivery Time : 5-8 work days

Packaging Details : Portable Folding Security Metal Detection Door is packaged within wooden case.

Contact Now

Digital I/O Portable Folding Security Metal Detection Door High-Brightness LCD

Product Overview

Advanced digital I/O portable folding security metal detection door featuring high-brightness LCD display for optimal visibility and performance in various security applications.

Key Features

Digital I/O keyboard with safe channel control and LED light display
High-brightness LCD screen operation
Adjustable alarm volume
Power-on self-detection and automatic calibration
Last environmental memory and shutdown sound prompt
Adjustable sensitivity (300 levels) with three independent detection areas
10-minute quick disassembly capability
Full body detection from head to toe across all areas

Technical Specifications

Operating Voltage: AC 100V-240V

Power Consumption: <10W

Construction Material: ABS polycarbonate alloy - providing strong impact resistance and durability

Backup Power: Includes AC adapter and 12V charging device with 36-hour operation during power failure (dual battery 7000mAh*2, total power 14000mAh)

Compliance Standards: FAA, NILECJ-0601.00

EMC Design: Yes

Total Weight: 50kg

Environmental Design Parameters

Parameter	Specification
Channel Size	2150mm × 810mm × 600mm (Height × Width × Depth)
Overall Dimension	2300mm × 980mm × 600mm (Height × Width × Depth)
Package Size of Door Panel	1070mm × 680mm × 710mm (Height × Width × Depth)
Temperature Range	-20°C to +70°C (-4°F to +158°F)
Relative Humidity	95%
Protection Grade	IP55 UV Protection

Application Areas

Airport entrances, customs clearance, electronics manufacturing facilities, gymnasiums, courthouses, judicial courts, viewing areas, VIP meeting places, nightclubs, bars, and other security inspection locations.

Product Images

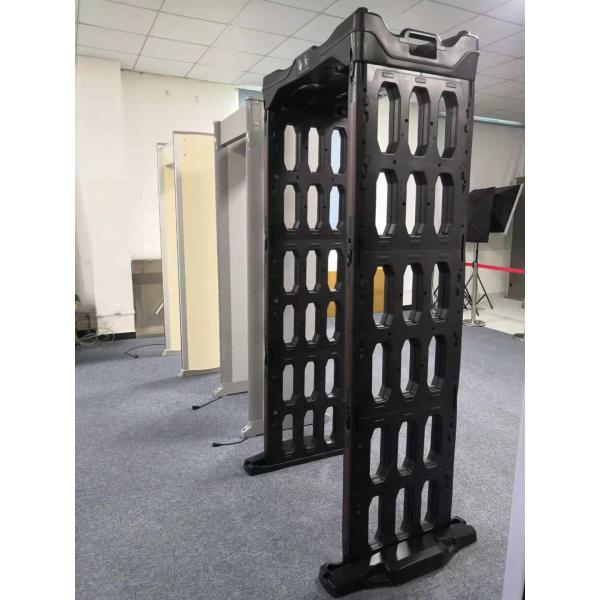

Digital I/O Portable Folding Security Metal Detection Door High - Brightness LCD
