X Ray Metal Detector Scanner , Luggage Metal Detecting Equipment

enetration : 34 mm steel guarantee

Product name : X Ray Metal Detector Scanner , Luggage Metal Detecting Equipment

Conveyor height : 670mm

Conveyor Speed : 0.23m/s

Conveyor Max Load : 170kg

Tunnel Size : 500mm*300mm custom

Warranty : 24 months

Weight : 355kg

Brand Name : ZL

Model Number : ZL-4005

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T,L/C,Western Union

Supply Ability : 100 set per month

Delivery Time : 10-15 days

Packaging Details : Packaged within wooden case

Contact Now

X-Ray Metal Detector Scanner & Luggage Detection Equipment

Advanced baggage metal detection system designed for airports, railway stations, hotels, correctional facilities, and banks.

General Specifications

\n\n\n\n\n\n\n\n\n\n\n\n\n

Tunnel Size	500mm * 300mm
Conveyor Speed	0.23 m/s
Conveyor Height	670 mm
Conveyor Max Load	170 kg
X-ray Dose per Inspection	<0.5 \u03bcGy
Wire Resolution	38 AWG (Guarantee 40 AWG typical)
Spatial Resolution Level	Diameter 1.0mm, Vertical diameter 1.0mm
Penetration	34 mm steel guarantee
Penetration Resolution	32 AWG wire visible below 22mm thick aluminum
Film Safety	Guarantee ASA/ISO 1600 Film
X-ray Leakage	<0.1 \u03bcGy/h (at 5cm from external housing)

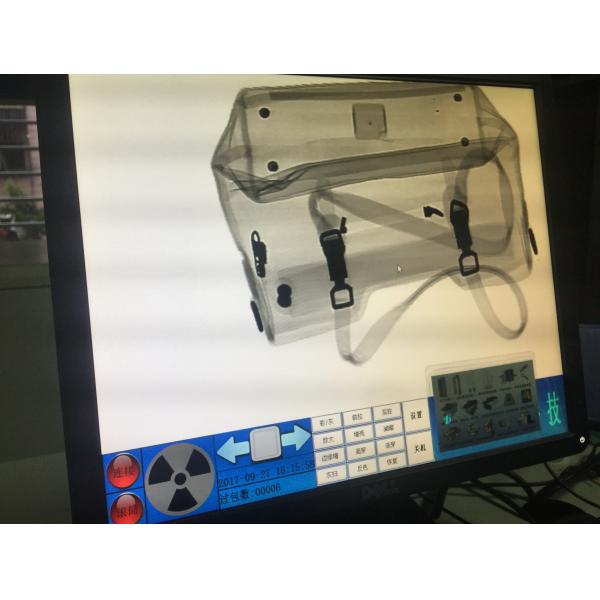

Image System Features

\n\n\n\n\n\n\n\n\n\n\n\n

Technical Principle	Dual-energy X-ray Imaging; Double L Shaped Array, 448 detectors
Image Display	High resolution 1280*1024
Image Enhancement	1-64* continuous enlargement, Color/BW, negative, high/low penetration, organic/inorganic stripping, general enhancement, pseudo color
Image Recall	All preceding images recallable
Explosives Detection	Explosives alarm and highlight by atomic number signature
High Density Region Alarm	Impenetrable region alarm for threat and non-compliant material detection
Threat Image Projection	Insert fictional threat images for training and assessment
Image Archive	80,000+ images stored automatically, USB transfer, JPG/BMP conversion
Network Applications	Multiple remote applications via Ethernet LAN and Windows platform
Image Processing	24-bit real-time processing, 4-color analysis, 4096 gray level memory

X-ray Generator

\n\n\n\n\n

Generate Direction	Bottom to top
Anode Voltage	140 kV
Cooling / Duty Cycle	Oil Cooling / 100%

Computer System

\n\n\n\n\n\n\n\n\n

Computer CPU	Intel Core 2 Duo 3400, 2.6GHz, 1MB L2 Cache, 800MHz FSB
Motherboard	Intel G41
Memory	2GB 1333MHz DDR3 RAM
Hard Disk	500GB 7200 rpm Serial ATA
Operating System	compatible operating system
Display	Two LCD monitors (17" industrial computer or 19" monitor)
Duty Cycle	100% without initial time

Operating Environment

\n\n\n\n\n\n\n

Operation Temperature/Humidity	0-45\u00b0C / 20%-95% (non-condensing)
Storage Temperature/Humidity	-40 to +60\u00b0C / 5%-95% (non-condensing)
Operation Power	220VAC (\u00b110%) 50\u00b13Hz
Power Consumption	1.4 KW (max), 1.3 KW (working)
Noise	<58 dB

Physical Dimensions

\n\n\n\n

Dimensions (LWH)	1662mm * 750mm * 1160mm
Weight	355 kg

Optional Accessories

Extension Rollers (50cm length)
UPS Camera System
Photographic System
Card Reader Operator Access
CD DVR/RW Unit
