Copper / Aluminum / Zinc Gravity Feed Metal Separator for Plastic Industry

Product name : Copper / Aluminum / Zinc Gravity Feed Metal Separator for Plastic Industry

Power : 220v 50hz

Cutting caliber : Φ25mm -Φ100mm

Accuracy : Φ0.2mm-Φ1.0mm

Compressed air : 3~5Bar

Amount : Customized

Warranty : 12 month

Key words : Separator , Fall

Brand Name : ZL

Model Number : ZL-4021

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100 set per month

Delivery Time : 7-10 days

Packaging Details : Copper / Aluminum / Zinc Gravity Feed Metal Separator for Plastic Industry is Packaged within wooden case

Contact Now

Copper / Aluminum / Zinc Gravity Feed Metal Separator for Plastic Industry

Product Overview

The Copper / Aluminum / Zinc Gravity Feed Metal Detector is specifically designed for use in the plastic industry to detect and separate metal impurities from raw materials.

How the Metal Separator Works

Raw material from the hopper or feeder free falls into the metal separator. When no metal impurities are detected, materials pass directly through to the lower outlet. If metal is detected, the controller immediately activates the separation plate to divert the metal and surrounding material to the side discharge port. The manifold then quickly returns to its normal position.

Manifold speed is adjustable for optimal performance
Detection accuracy can be adjusted according to production needs
Minimum detection capability: Φ0.2mm metal particles

Key Features

Uses electronic sensing principle to detect both magnetic and non-magnetic metals
High-precision detection and separation equipment
Detects iron (magnetic) and non-iron metals (copper, aluminum, tin, stainless steel, etc.)
Essential for protecting equipment from metal contamination in recycled materials
Automatically detects and separates linear metal impurities

Technical Parameters

Model	ZL-025	ZL-035	ZL-050	ZL-075	ZL-100
Cutting Caliber	Φ25mm	Φ35mm	Φ50mm	Φ75mm	Φ100mm
Accuracy	Φ0.2mm	Φ0.3mm	Φ0.5mm	Φ0.7mm	Φ1.0mm
Capacity	250KG/HR	300-400 KG/HR	700-800 KG/HR	1000-1500 KG/HR	2000-2500 KG/HR
Voltage	220V/50~60Hz	220V/50~60Hz	220V/50~60Hz	220V/50~60Hz	220V/50~60Hz
Temperature	-10~+80°C	-10~+80°C	-10~+80°C	-10~+80°C	-10~+80°C
Response Time	0.3-5S	0.3-5S	0.3-5S	0.3-5S	0.3-5S
Compressed Air	3~5Bar	3~5Bar	3~5Bar	3~5Bar	3~5Bar
Dimensions	318×230×326(mm)	318×230×326(mm)	318×230×326(mm)	378×270×350(mm)	390×280×385(mm)

Product Images

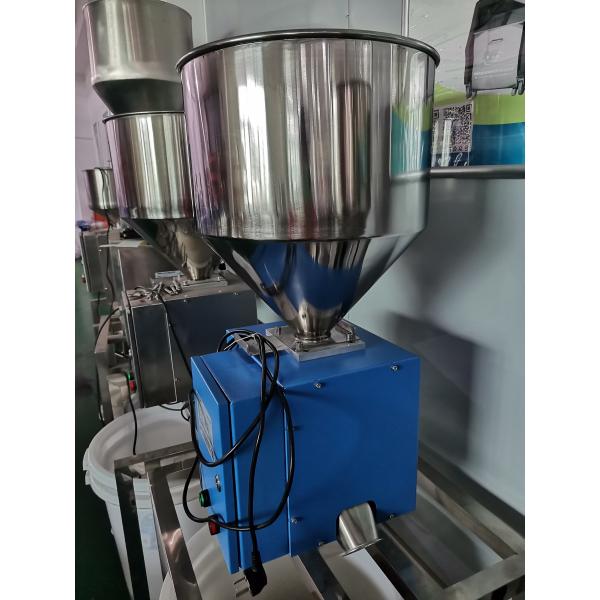

Copper / Aluminum / Zinc Gravity Feed Metal Separator for Plastic Industry
