Rubber Testing Machine 0.5L 2L 5L 10L Laboratory Open - Close Banbury Mixer

Brand Name : ZL

Model Number : ZL-3011

Certification : CE, ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, D/P, D/A

Supply Ability : 30 sets per month

Delivery Time : 15-20 Days

Packaging Details : Packaged in wooden case （fumigation free）

Product name : Laboratory Open-close Banbury Mixer

Mixing volume : 0.5~10L

Main engine power : 3.7~15kw

Heating power : 4~10KW

Heating method : Electric heating

Cooling method : Water cooling

Speed control power : 5.5~18.5KW

Warranty : 24 month

Contact Now

Rubber Testing Machine 0.5L 2L 5L 10L Laboratory Open-Close Banbury Mixer

Product Overview

The Laboratory Open-Close Banbury Mixer is a high-performance rubber testing machine available in 0.5L, 2L, 5L, and 10L capacities. Designed for research and development applications, this mixer features advanced coaxial separation technology and efficient mixing capabilities for various materials including zirconia, alumina, ceramic powder, magnetic powder, stainless steel powder, and metal powders.

Key Features

Twice the speed of traditional internal mixers, significantly improving efficiency and production capacity
Advanced coaxial separation technology with one-sided rotor shaft separation
High-end wear-resistant inner cavity material prevents material contamination
Suspended rotor design with open-closing mixing chamber for easy cleaning and color refilling
No blind corner design allows complete access for thorough cleaning
Wide process adaptability with compact structure and 80-100 rpm stepless speed regulation
Open mixing chamber design with three removable sides and drawer-type discharge
Zero residue discharge system, ideal for expensive anti-pollution materials
Uniform mixing with convenient color refueling and stable, noiseless transmission system
Electric heating with water cooling, featuring imported heating tubes (6KW maximum, 300°C)
Self-lubricating mechanical squeezing shaft seal with hydraulic compression method

Technical Specifications

Model	0.5L	1L	5L	10L
Mixing Volume	0.5L	1L	5L	10L
Main Engine Power	3.7KW	5.5KW	7.5KW	15KW
Heating Power	4KW	4.8KW	6KW	10KW
Heating Method	Electric Heating
Cooling Method	Water Cooling
Speed Control Power	5.5KW	7.5KW	11KW	18.5KW
Opening & Closing Device	Cylinder Control		Hydraulic Control

Documentation

Download the complete product brief for detailed specifications and technical information:

Download Product Brief (PDF)

Product Images

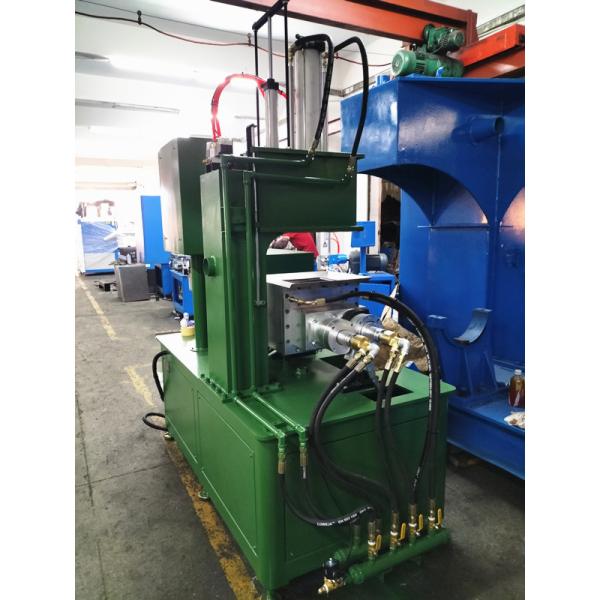

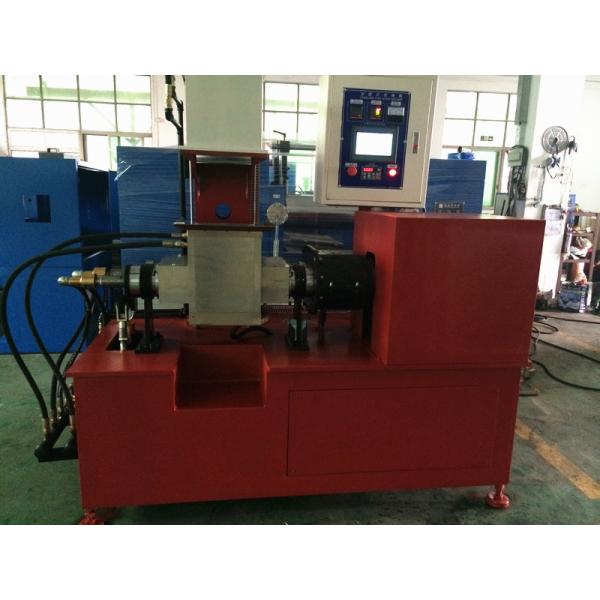

Rubber Testing Machine 0.5L 2L 5L 10L Laboratory Open - Close Banbury Mixer
