Cable Burn Horizontal and Vertical Flammability Universal Testing Machine

Power : 220v 50hz

Color : Customized

Timing accuracy : 1 s

Testing room area : 0.75m3

Titled : 20°45°, 90°

Warranty : 12 month

Brand Name : ZL

Model Number : ZL-3028

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100 set per month

Delivery Time : 7-10 days

Packaging Details : Packaged in wooden case （fumigation free）

Contact Now

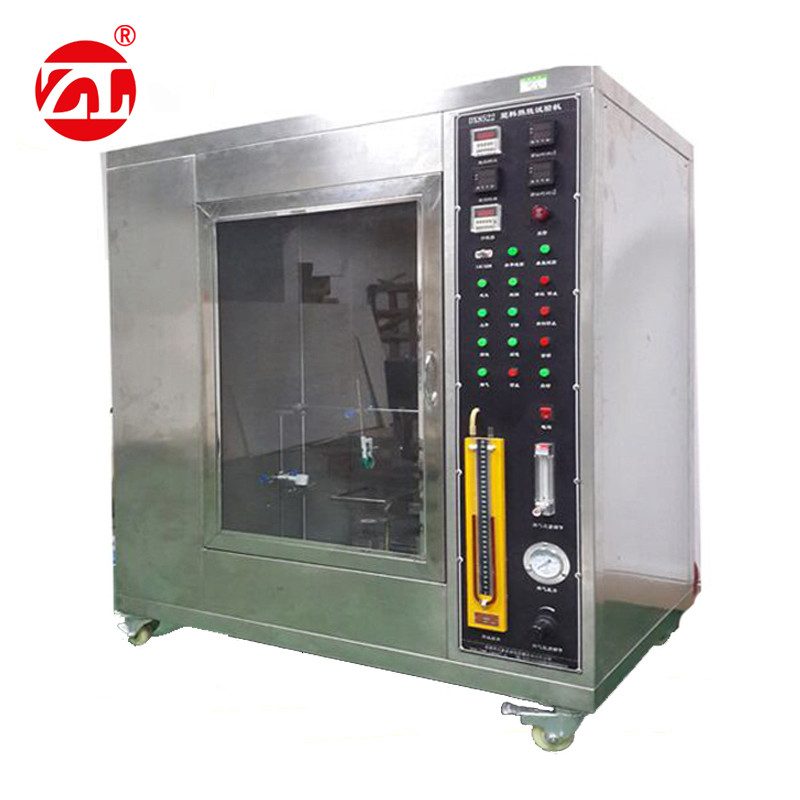

Cable Burn Horizontal and Vertical Flammability Universal Testing Machine

Equipment Overview

The Horizontal Vertical Burn In Test Machine is designed for testing solid materials and foam with an apparent density of not less than 250kg/m³ according to GB6343. This equipment evaluates material flammability when placed in horizontal and vertical positions using a small flame ignition source. The machine features safe operation, reliable performance, and user-friendly controls.

Technical Specifications

Parameter	Specification
Product Name	Horizontal Vertical Burn In Test Machine
Testing Room Area	0.75m³
Timing Accuracy	1s
Sample Size Requirements	Length: 125±5mm, Thickness: 3.0±0.2mm, Width: 3.0±0.2mm
Specification	Tube length 100±10mm, Diameter: 9.5±0.5mm
Tilt Angles	20°, 45°, 90°
Height of Burner Blue Flame	20mm (Adjustable)
Time Account	0~9999 times
Timer	0~99.99s

Main Configuration

Host box (vertical burning, burning one level)
Burning section includes Bunsen burner, solenoid valve, high pressure ignition, gas pipes, regulators
Internal control box includes fire-breathing, timing timer, counter
Burner can be manually lifted in vertical direction when necessary

Compliance Standards

The Horizontal Vertical Burn In Test Machine is designed according to national standard GB/T2408-1996 "Test method for flammability of plastic - horizontal and vertical Law" for flame-retardant material testing. The equipment meets UL 94 and EN 60695-2-11 standards.

Product Images

Cable Burn Horizontal and Vertical Flammability Universal Testing Machine
