Easy to Operate And Maintain Pipe Hydraulic Pressure Burst Tester

Brand Name : ZL

Product name : Pipe hydraulic pressure burst tester

Pressure range : 0 ~ 16MPa (arbitrary setting)

Pressure display accuracy : 0.01MPa

Control accuracy : upper limit + 2%, lower limit -1%

Temperature control range : room temperature ~ 95 ℃

Time display accuracy : 1 second

Model Number : ZL-3021A

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 sets / month

Delivery Time : 4-7 work days

Packaging Details : Pipe Hydraulic Pressure Burst Tester is Packaged witnin wooden case.

Contact Now

Easy to Operate And Maintain Pipe Hydraulic Pressure Burst Tester

The Pipe Hydraulic Pressure Burst Tester is designed for long-term pressure and burst testing of plastic pipes and composite pipes. This equipment complies with ISO1167 and GB/T6111 standards for fluid plastic thermoplastic pipe endurance testing, and is applicable to relevant material standards. It can be used for pressure detection of PVC, PE, PPR, ABS, and composite materials.

Key Features

Continuous operation without interruptions to ensure test integrity
Independent branches for easy operation and maintenance
Separate pressurized water tank using pure water to fill pipe samples, ensuring water quality and extending component lifespan
Proprietary pulse duty cycle pressure technology combining pressure boosting and filling into one step
American piston pump for low noise, fast pressure buildup, and extended service life

Working Principle

The system stores pressure 2-3MPa higher than maximum branch pressure in an accumulator. After calculating test pressure based on sample ring stress, the microcontroller controls solenoid valves for rapid pressure increase. During filling phase, solenoid valves operate intermittently based on microcontroller data. The system automatically stops when pressure drops below set limits and includes functions for running, stopping, test completion, and break identification.

Equipment Components

The test machine consists of pressure control system, pressure source, temperature medium box, and fixture components. The pressure control system includes accumulator, solenoid valves, manual needle valves, and connecting pipes. Electrical control uses microcontroller, LCD, pressure sensors, and relays. The pressure source provides total pressure, while the thermostatic medium box features stainless steel construction with circulation pump and heating system.

Technical Parameters

Parameter	Specification
Pressure Range	0 ~ 16MPa (arbitrary setting)
Pressure Display Accuracy	0.01MPa
Control Accuracy	Upper limit +2%, Lower limit -1%
Temperature Control Range	Room temperature ~ 95℃
Temperature Display Range	±1℃
Time Display Range	0 minutes to 9999.59 hours
Time Display Accuracy	1 second
Maximum Sample Diameter	630mm (custom tank size available)
Pressure Control System Power	AC380V, 1.5kw

Optional Accessories

Stainless steel grips available from φ20mm to φ630mm

Key Components

Host Control Software: Zhongli Company
Pressure Components: American piston pump, German solenoid valves, stainless steel needle valves
Pressure Display: Xiamen Yu Electric control table, German pressure sensors, Chint electrical components

Product Images

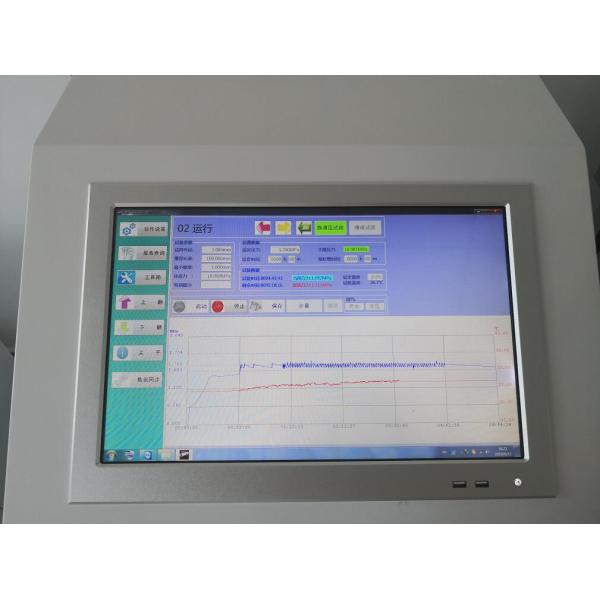

Easy to Operate And Maintain Pipe Hydraulic Pressure Burst Tester
