Car Interior Material Flame Retardant Test Chamber , Burning Resistance Test Machine

Brand Name : ZL

Model Number : ZL-3030

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100 set per month

Delivery Time : 7-10 days

Packaging Details : Packaged in wooden case （fumigation free）

Power : 220v 50hz

Color : Customized

Burning time : 0-99.99 S/M/H

Source : natural gas/gas

Metal comb : 110mm long, 7-8pcs smooth crenates every 25mm interaval

Warranty : 24 month

Thermometer : 150℃, ±1℃ accuracy

Contact Now

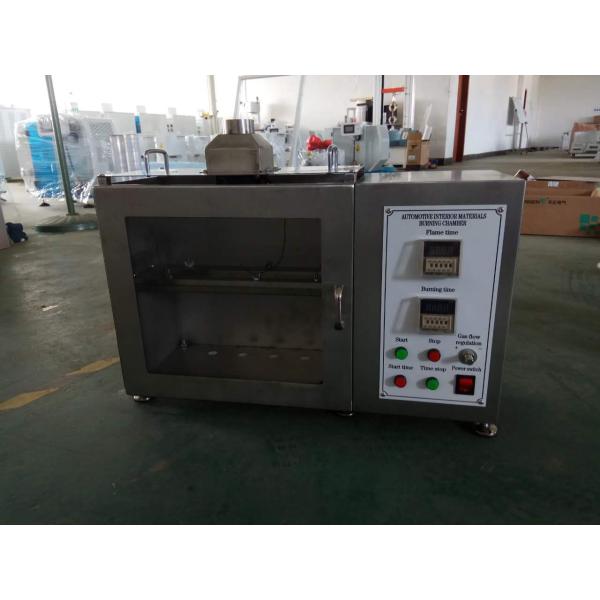

Car Interior Material Flame Retardant Test Chamber, Burning Resistance Test Machine

Product Overview

The small size air bag burning resistance testing machine is designed for horizontal combustion performance evaluation of automotive interior materials. This testing equipment is applicable for cars, multipurpose passenger vehicles, trucks, and buses.

Definition of Automotive Interior Materials

Automotive interior materials include:

Dashboard system and deputy dashboard system
Door guard board system and ceiling system
Seating system and pillar sheeting system
Driving interior fitting system and cabin air circulation system
Trunk system and engine cabin fittings
Carpet, seat belts, and airbags
Steering wheel, interior lighting, and interior acoustic system

Test Method

A horizontal specimen is fixed on the U-shaped holder. The ruled height flame is used to light the free end of the specimen for 15 seconds. Observations are then made to determine if the flame extinguishes, while measuring the specimen burning distance and combustion time.

Technical Features

Feature	Specification
Material	Chamber adopts mirror stainless steel plate construction
Ventilation System	Ten pieces ventilation holes (ID 19mm) at chamber bottom, 13mm ventilation slots around walls
Specimen Holder	Two U-shaped anti-corrosion metal specimen holders (361L x 100W mm)
Timing Control	Burning time and stop burning time can be set within 0-99.99 S/M/H
Burning Lamp Nozzle	ID 9.5mm, 38mm flame height (adjustable), nozzle center positioned 19mm below middle of free end
Fuel Source	Natural gas/gas
Metal Comb	110mm long with 7-8 smooth crenates every 25mm interval
Steel Rule	400mm long with 1.0mm accuracy
Thermometer	150℃ range with ±1℃ accuracy
Power Supply	AC 1 phase 220V 50/60Hz 500W

Compliance Standards

AGB8410-2006, ISO379, ASTM D5132, TL1010, GM6090M, DIN7520, GM9070P, FMVSS 302, JIS D 1201, JASO M403, ISO 3795, ASTM D5132 and other equivalent test standards.

Car Interior Material Flame Retardant Test Chamber , Burning Resistance Test Machine
