Large Color LCD Two Boxes Air - Cooled Hot and Cold Impact Environmental Chamber

Brand Name : ZL

Model Number : ZL-6012A

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 40 sets / month

Delivery Time : 5-8 work days

Packaging Details : Two boxes air-cooled hot and cold impact testing machine is packaged within wooden case.

Control temperature : ±2℃

Resolution : 0.01℃

Device noise : Below 75dB.

Outside size : 140cm（W）*180cm（H）*142cm（D）

Outside material : Stainless steel

Weight : 10Kg

Contact Now

\n
\n
Large Color LCD Two Boxes Air-Cooled Hot and Cold Impact Environmental Chamber
\n
\n
Product Overview
\n
Large Color LCD Touch Two Boxes Air-cooled Hot And Cold Impact Testing Machine is designed to test material changes under extreme high and low temperature environments that alternate continuously in the shortest time. The equipment tests chemical changes or physical damage caused by thermal expansion and contraction.
\n
\n
\n
Equipment Functionality
\n

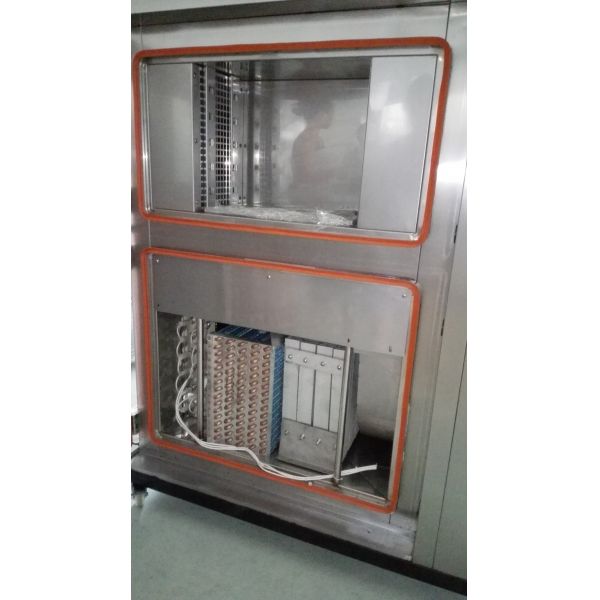

The testing chamber is divided into two parts: high-temperature region and low-temperature region. Testing samples are placed on a moving basket that utilizes unique heat storage and cool storage technology. A cylinder moves the basket up and down between hot and cold regions to complete temperature impact testing.
\n
\n
\n
Applications
\n
Applied to test various materials including metals, plastics, rubber, electronics, and other materials. Used for electrical and electronic components, automation components, communication components, auto parts, chemical materials, plastics industries, defense, aerospace, industrial applications, BGA, PCB base plates, electronic chips, ICs, semiconductors, ceramics, and high-molecular materials.
\n
\n
\n
Key Features
\n
    \n

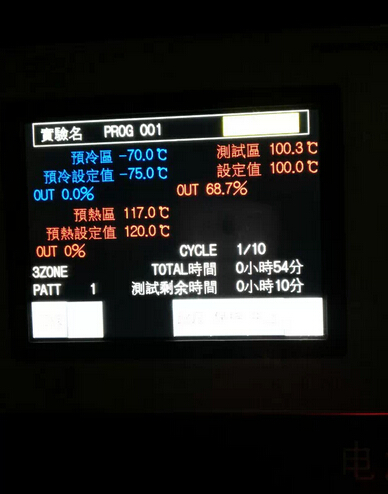

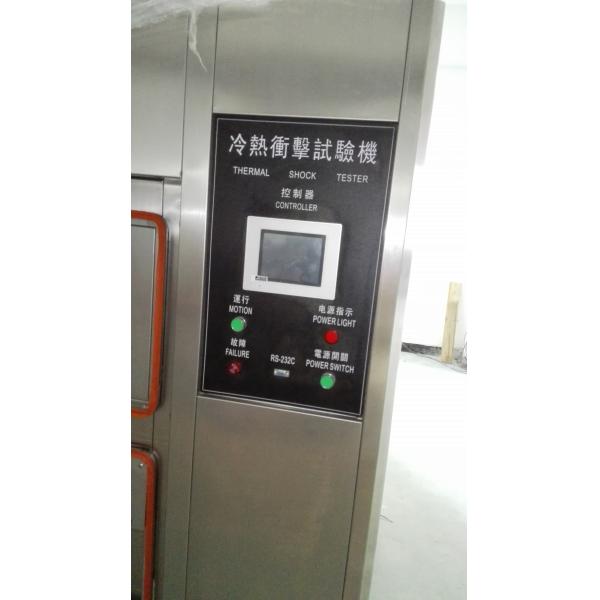

  • Large color LCD touch interactive microcomputer control system, easy to understand and operate
    • \n
  • Closed imported compressor + environmental refrigerant, cold plate heat exchanger and dual-type ultra-low temperature refrigeration systems
    • \n
  • LAN network communication interfaces for computer remote control
    • \n
  • Independent setting for heat, cold, and hot/cold impact conditions with three different functions
    • \n
  • Automatic pre-cooling, preheating, and standby functions during startup
    • \n
  • Configurable defrost cycles with automatic (manual) defrost capability
    • \n
  • User-friendly controller interface with comprehensive troubleshooting display
    • \n
\n
\n
\n
Compliance Standards
\n
    \n
  • GB/T2423.1-1989 low-temperature testing method
    • \n
  • GB/T2423.2-1989 high-temperature testing method
    • \n
  • GB/T2423.22-1989 change temperature test
    • \n
  • GJB150.5-86 temperature impact test
    • \n
  • GJB360.7-87 temperature impact test
    • \n
  • GJB367.2-87 405 temperature impact test
    • \n
\n
\n
\n
Industry Applications
\n
Widely used in aviation, industrial, ships, electrical, electronics, instruments and meters; medical equipment; civilian nuclear energy; colleges and universities; research laboratories; commodity inspection, arbitration, technical supervision departments; building materials ceramic; petroleum and chemical products, machinery and spare parts.
\n
\n
\n
Technical Specifications
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
ModelZL-6012A
Temperature RangeA. High-temperature: +60\u2103\uff5e+150\u2103 (customizable)
B. Low-temperature: -10\u2103\uff5e-40\u2103
Control Temperature\u00b12\u2103
Resolution0.01\u2103
Heating Time (High-temperature)RT\uff5e\uff0b150\u2103 approx. 35min (RT: \uff0b5\uff5e\uff0b30\u2103)
Cooling Time (Low-temperature)RT\uff5e-40\u2103 approx. 50min (RT: \uff0b5\uff5e\uff0b30\u2103)
Moving & Recovery TimeBasket movement: 10sec
Temperature recovery: 3-5min (Stabilization \u2265 30min)
Device NoiseBelow 75dB
Weight10Kg
Testing Region50cm(W) \u00d7 50cm(H) \u00d7 50cm(D)
Outside Dimensions140cm(W) \u00d7 180cm(H) \u00d7 142cm(D)
Testing Basket Size30cm(W) \u00d7 40cm(H) \u00d7 30cm(D)
Inside MaterialSUS#304 Cold-Heat-resistant stainless steel
Outside MaterialStainless steel
Insulation MaterialHigh-density glass wool and high strength PU foam insulation
Anti-sweat StructureInsulation layer and door micro-thermal anti-sweat
Expansion CapabilityHeat reach 300\u2103, Cold reach -100\u2103
\n
\n
\n
Product Images
\n
\nLarge Color LCD Two Boxes Air - Cooled Hot and Cold Impact Environmental Chamber\nLarge Color LCD Two Boxes Air - Cooled Hot and Cold Impact Environmental Chamber\nLarge Color LCD Two Boxes Air - Cooled Hot and Cold Impact Environmental Chamber\n
