IPX8 Water - Resistance Testing Machine For Automobiles , Motorcycles Etc

Brand Name : ZL

Model Number : ZL-6016

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 40 sets / month

Delivery Time : 5-8 work days

Packaging Details : IPX8 Water-resistance Testing Machin is packaged within wooden case.

Product name : IPX8 Water-resistance Testing Machine

Tank diameter(m) : 0.5 meter

Water level inside tank : 1.0 meter

Machine outer size : 600*780*1300mm

Tank Material : SUS304#

Time control : 0－999Min

Contact Now

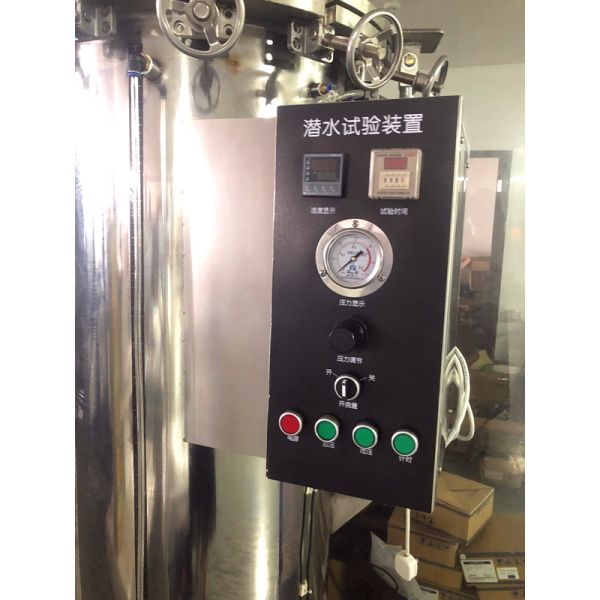

IPX8 Water-Resistance Testing Machine For Automobiles, Motorcycles, etc.

Product Overview

This IPX8 water-resistance testing machine is designed to detect the protective performance of appliances with waterproof performance requirements. It prevents water intrusion during submersion and ensures equipment remains undamaged by water ingress under specified pressure conditions.

Applications

The equipment tests physical and related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated rain conditions. Test results determine whether product performance meets requirements for design improvement, verification, and factory inspection.

Standards Compliance

Complies with IEC60529:2001 "Degrees of protection provided by enclosures (IP Code)", GB4208-2008 "Enclosure Protection Level (IP Code)" 14.2.8 and GB7000.1 "Lamps Part 1: General Requirements and Tests" 9.2.9 terms and conditions.

Key Features

Specifically designed for IPX8 testing of products
Tanks constructed from SUS304# stainless steel plate with high-precision arc welding, polished exterior and rough interior for durability and easy cleaning
Special silicone sealing rings with excellent elasticity and long-term performance
Electronic control components from premium brands including LG, high-performance, Omron, and Anliang
Time control function with settings from 0-999 minutes, automatic stop and air drainage
Bottom-mounted water inlet and drain valves with 5-meter water hose
Four casters with brakes for easy mobility
Manual type features domestic "Red Flag" pressure gauge with voltage regulation
Automatic type uses imported high-performance pressure sensor for precise pressure control

Technical Specifications

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

No.	Parameter	IPX8A-30M	IPX8B-30A	IPX8A-50M	IPX8A-50A	IPX8A-100M	IPX8A-100A
1	Pressure Adjust	Manual	Automatic	Manual	Automatic	Manual	Automatic
2	Control Accuracy (MPa)	View Sight (Manual)	\u00b10.002 (Automatic)	View Sight (Manual)	\u00b10.002 (Automatic)	View Sight (Manual)	\u00b10.002 (Automatic)
3	Pressure Range (MPa)	0.05-0.3	0.00-0.3	0.05-0.5	0.00-0.5	0.05-1.0	0.00-1.0
4	Test Water Depth Range (m)	5-30	0-30	5-50	0-50	5-100	0-100
5	Relief Valve Pressure (MPa)	0.35	0.35	0.55	0.55	1.05	1.05
6	Maximum Ultimate Pressure (MPa)	0.40	0.40	0.60	0.60	1.10	1.10
7	Pressure Meter Accuracy	0.4mpa	0.001MPa	0.4 mpa	0.001MPa	0.4 mpa	0.001MPa
8	Tank Thickness	3mm	3mm	4mm	4mm	6mm	6mm
9	Flange Thickness	20mm	20mm	25mm	25mm	30mm	30mm
10	Tank Diameter	0.5 meter
11	Water Level Inside Tank	1.0 meter
12	Machine Outer Size	6007801300mm
13	Tank Material	SUS304#
14	Time Control	0-999 Min
15	Protective Safety	Pressure relief valve protection, leakage switch
16	Power	AC220V, 100W
17	Weight (kg)	100	120	200	200	200	200
