10 Ton Single - Deck Laboratory Rubber / Plastic Hydraulic Hot Press Machine

Brand Name : ZL

Model Number : ZL-3022

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 Sets

Delivery Time : 5-8 work days

Packaging Details : 10 Ton Single - deck Laboratory Rubber / Plastic Hydraulic Hot Press Machine is packaged within wooden case.

Product name : 10 Ton Single - deck Laboratory Rubber / Plastic Hydraulic Hot Press Machine

Capacity : 10 T

Pressure material : SKD chromium-molybdenum alloy

Pressure surface : Mirror chrome plated

Oil cylinder stroke : Max 200mm

Pressure gauge : 0～350kg/sq.cm

Power supply : 3∮，AC380V，20A

Temp. Controller : LED Indicator，press key set input, the value indicate output

Contact Now

10 Ton Single-Deck Laboratory Rubber / Plastic Hydraulic Hot Press Machine

Product Introduction

This laboratory hydraulic hot press machine is specifically designed for processing rubber and plastic materials, pigments, oils, and chemical materials. Raw materials are placed in the mold and clamped between electric heating plates, where appropriate pressure and temperature are applied to shape the materials for testing purposes.

Main Features

High-performance hydraulic system with automatic pressure compensation function
Programmable first and second pressurization timing and pressure settings
High-precision, high-wear-resistant guide columns with strong load capacity and stable lifting
Imported technology for electric heating plate materials - high temperature resistance, corrosion resistance, fast heat transfer, and no deformation
Intelligent oil circuit design with automatic shutdown maintenance pressure or delayed shutdown functions
Automatic pressurization or pressure relief when preset time is reached

Technical Parameters

Capacity	10~50 ton (Optional)
Temperature Range	Room temperature to 300℃
Temperature Controller	LED Indicator, press key set input, value indicate output
Timer	LED display, time range 0.1S to 99min to 9.9hr
Heating Type	Electrical Heating module
Hot Pressure Plate	300×300mm (can be customized)
Cold Pressure Plate	300×300mm (can be customized)
Distance of Pressure Plate	100mm
Pressure Material	SKD chromium-molybdenum alloy
Pressure Surface	Mirror chrome plated
Cooling Temperature Scope	Room temperature to +5℃
Cooling Type	Tap water cooling/compressor cooling water (optional)
Oil Pressure System	Proportion hydraulic pressure current capacity loop circuit control system, GPY oil pump driver high performance with high accuracy non-resistance piston oil cylinder for constant speed rate control mode, can pre-select one or two times pressure and time
Oil Cylinder Stroke	Max 200mm
Oil Cylinder Speed	11mm/s
Pressure Gauge	0~350kg/sq.cm
Power	10.6HP
Dimension W×D×H	1000×500×1500 mm
Power Supply	3∮, AC380V, 20A
Weight	About 658kg

10 Ton Single - Deck Laboratory Rubber / Plastic Hydraulic Hot Press Machine

Product Tags:

10T Hydraulic Hot Press Machine

AC380V Hydraulic Hot Press Machine

10.6HP hydraulic hot press

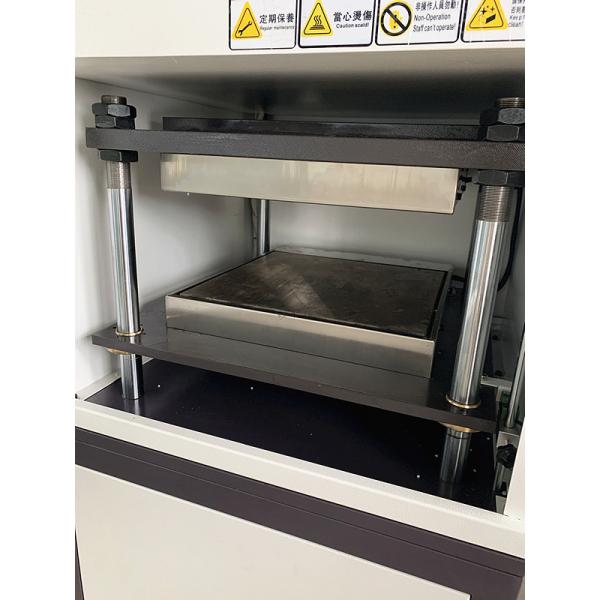

10 Ton Single - Deck Laboratory Rubber / Plastic Hydraulic Hot Press Machine Images
