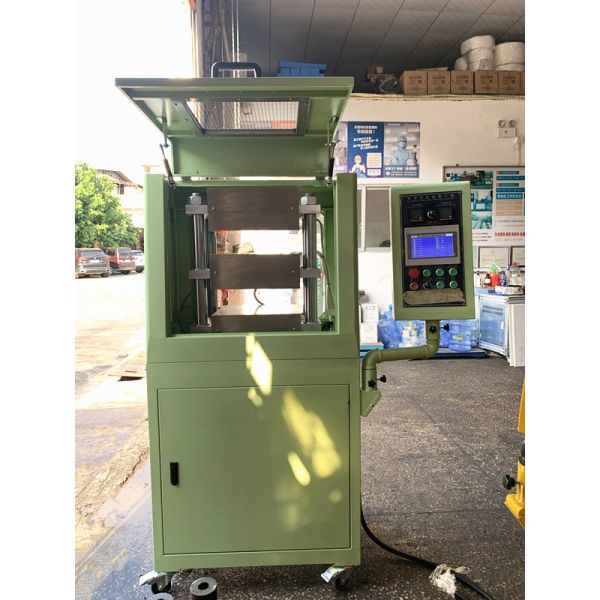

Customized Green Color Automatic Hydraulic Truck Tyre Vulcanizing Press Machine

Brand Name : ZL

Model Number : ZL-3022

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : Customized Green Color Automatic Hydraulic Truck Tyre Vulcanizing Press Machine is packaged within wooden case.

Product name : Customized Green Color Automatic Hydraulic Truck Tyre Vulcanizing Press Machine

Hot / cold pressure plate : 300×300mm ( can be customized)

Distance of pressure plate : 100mm

Temp. range : Room temp. ～300℃

Pressure material : SKD chromium-molybdenum alloy

Power supply : 3∮，AC380V，20A

Dimension W×D×H : 1000×500×1500 mm

Key words : Hydraulic , Vulcanizing

Contact Now

Customized Green Color Automatic Hydraulic Truck Tyre Vulcanizing Press Machine
Customized Green Color Automatic Hydraulic Truck Tyre Vulcanizing Press Machine
Introduction
The material is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature, making the material shaping, testing and serving as the basis for the ingredient of mass production.
Technical Parameters
Capacity 10~50ton (Option)
Temp. Range Room temp. ～300℃
Temp. Controller LED Indicator, press key set input, the value indicate output
Timer LED display, time range 0.1S～99min～9.9hr
Heating type Electrical Heating module
Hot pressure plate 300×300mm (can be customized)
Cold pressure plate 300×300mm (can be customized)
Distance of pressure plate 100mm
Pressure material SKD chromium-molybdenum alloy
Pressure surface Mirror chrome plated
Cooling temperature scope Room temp. ～＋5℃
Cooling type Tap water cooling/compressor cooling water (optional)
Oil pressure system The proportion hydraulic pressure current capacity loop circuit control system, the GPY oil pump driver high performance electroencephalographic matching high accuracy non resistance piston of oil cylinder carry out constant speed rate control mode, can pre-selection one, two times pressure and time.
Oil cylinder stroke Max 200mm
Oil cylinder speed 11mm/s
Pressure gauge 0～350kg/sq.cm
Power 10.6HP
Dimension W×D×H 1000×500×1500 mm
Power supply 3∮, AC380V, 20A
Weight About 658kg
Download Brief
ZL-3022 Laboratory Hydraulic Press Tester; Lab Hot press machine.pdf
