HG / T 3660-1999 T Electric Heating High Temperature Digital Display Viscometer

Brand Name : ZL

Model Number : ZL-1305

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : HG / T 3660-1999 T Electric Heating High Temperature Digital Display Viscometer is packaged within wooden case.

Product name : HG / T 3660-1999 T Electric Heating High Temperature Digital Display Viscometer

Measuring range (mPa.s) : 10 ~ 200,000

Measurement error (Newtonian liquid) : ± 3%

Repeat error (Newton liquid) : ± 0.5%

Temperature range : Room temperature +10 ℃ ~ 250 ℃

Temperature control accuracy : 0.1 ℃

The data output : interface

Data processing : Software standard

Contact Now

HG / T 3660-1999 T Electric Heating High Temperature Digital Display Viscometer

Product Summary

This advanced viscometer features microcomputer driving technology with imported stepper motor and LCD backlight display. It offers smooth speed control, high accuracy, programmable operation, and error alarm functions. The display shows viscosity, speed, percentage torque, rotor number, and measured liquid temperature. Full-scale calibration ensures exceptional accuracy and repeatability.

Main Features

Direct LCD measurement display - no secondary calculations required
Standard sample adapter requires minimal testing volume (15-25ml)
Advanced microcomputer-driven technology with imported synchronous power
Switching power supply and programmable motor - mains frequency doesn't affect accuracy
Embedded heating furnace provides even heat distribution with minimal thermal inertia
Self-tuning PID temperature control with large backlit LCD display
RS232 interface for viscosity, temperature, and test time data output
Standard data processing software for real-time viscosity recording and rheological analysis

Compliance Standards

GB / T 2794-1995 - Determination of viscosity of adhesives
HG / T 3660-1999 T - Standard Test Method for Determination of Melt Viscosity of Hot-melt Adhesives
Relevant standards for asphalt viscosity testing

Technical Parameters

Parameter	Specification
Display	Digital display
Speed (r/min)	0.5/1/2/2.5/4/5/10/15/20/25/30/40/50/60/70/80/90/100
Rotor	21#, 27#, 28#, 29#
Measuring Range	10 ~ 200,000 mPa·s
Measurement Error (Newtonian liquid)	± 3%
Repeat Error (Newton liquid)	± 0.5%
Heating Method	Electric heating
Temperature Range	Room temperature +10℃ ~ 250℃
Temperature Control Accuracy	0.1℃
Data Output	Interface available
Software	Standard
Dimensions	300 × 300 × 450 mm

Standard Configuration

Main machine: 1 set

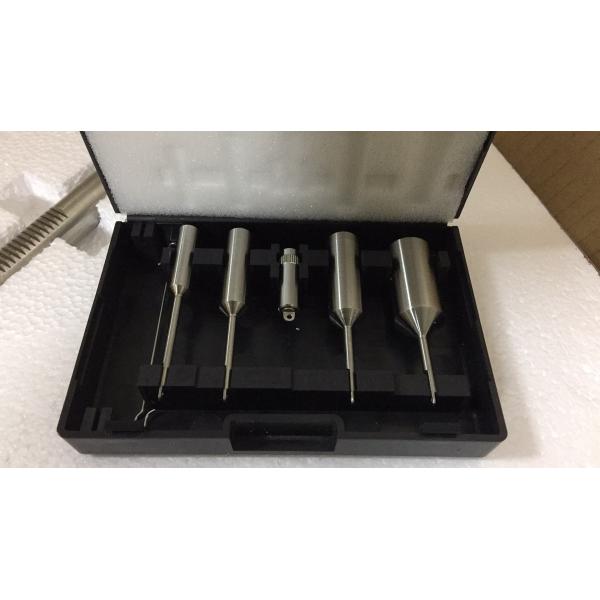

Rotor: 21#, 27#, 28#, 29#
Outer barrel: 2 pcs
Temperature device: 1 pc
Heating oven: 1 pc
Power cord: 2 pcs
Software: 1 copy
Operation manual: 1 copy

HG / T 3660-1999 T Electric Heating High Temperature Digital Display Viscometer

Product Tags:

0.1 ℃ Digital Display Viscometer

100r / Min Temperature Test Chamber

HG / T 3660-1999 T Electric Heating High Temperature Digital Display Viscometer Images
