GB 5725-2009 Safety Net Impact Penetration Testing Machine With Electric Lifting

Product name : GB 5725-2009 Safety Net Impact Penetration Testing Machine with Electric Lifting

Impact steel ball : Is made of 14mm thick steel plate stamped and welded

Steel ball diameter : (500±10) mm

Steel ball weight : (100±1) kg

The highest distance from the test surface : 7 meters

The total height of the impact frame : 10 meters

Penetration test height : 1m from the center of the penetration network

Angle between the penetration test frame and the horizontal plane : 30°

Working power supply : AC 220V, 50Hz

Key words : Impact Penetration

Brand Name : ZL

Model Number : ZL-1819

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : GB 5725-2009 Safety Net Impact Penetration Testing Machine with Electric Lifting is packaged within wooden case.

Contact Now

GB 5725-2009 Safety Net Impact Penetration Testing Machine With Electric Lifting

GB 5725-2009 Safety Net Impact Penetration Testing Machine with Electric Lifting

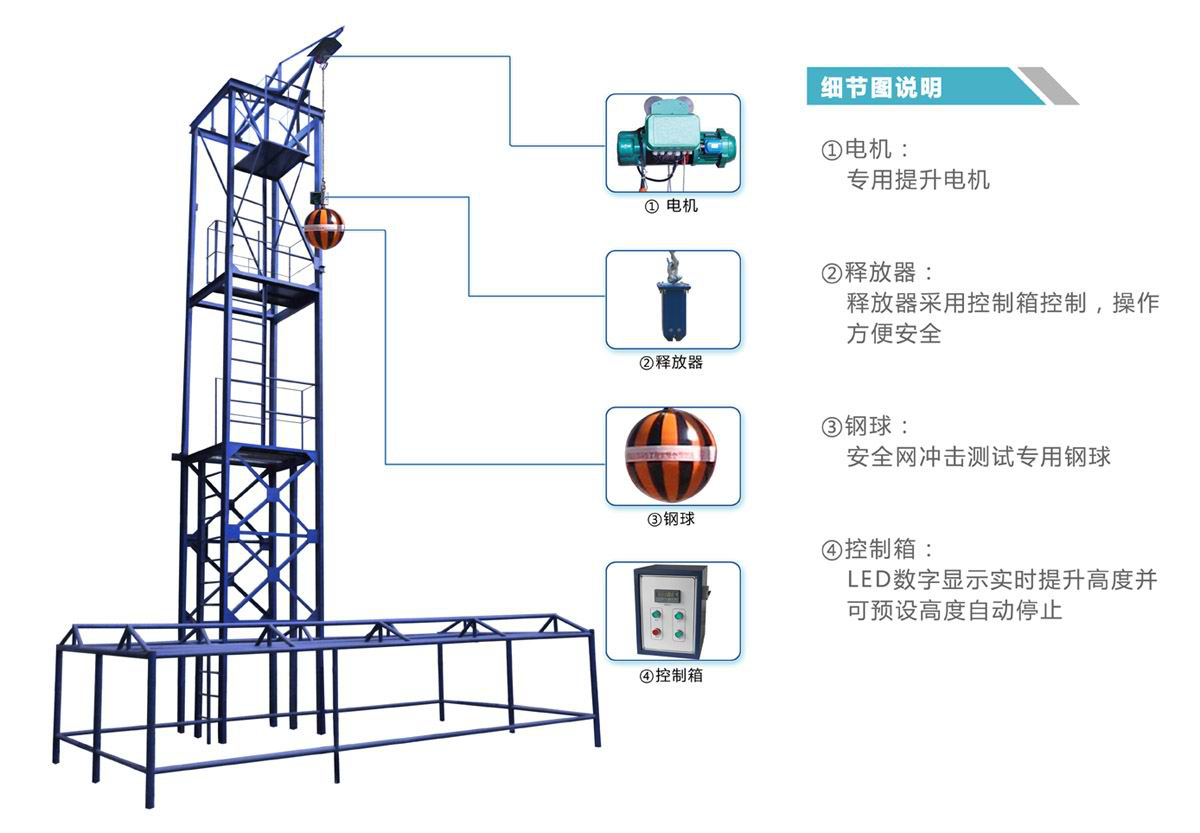

Instrument Introduction

Specialized in testing the impact resistance and penetration strength of safety nets. Widely used in special labor protection equipment supervision and inspection stations, building science research institutes, construction engineering inspection stations, and safety net production enterprises.

Detailed Parameters

LED displays the lifting height in real time; the lifting height can also be preset, and it will automatically stop when the test object reaches the preset height
Impact steel ball: Made of 14mm thick steel plate stamped and welded, with a diameter of (500±10) mm and a weight of (100±1) kg (can be weighted by yourself)
Adjustable impact height: Highest distance from the test surface is 7 meters; total height of the impact frame is 10 meters (LED digital display lifting height)
Penetration: Stainless steel round bar with a diameter of 50mm and a mass of 5kg
The angle between the penetration test frame and the horizontal plane: 30°
Penetration test height: 1 meter from the center of the penetration network
Using universal joint positioning device to ensure that the test rod falls vertically in a free fall shape to ensure the reliability of the test data
Test frame: The whole machine has a unique structure design, reasonable use of supporting points, simple and reliable operation
Lift release device: Adopt electric lifting and electric release functions
Working power supply: AC 220V, 50Hz

Meet the Standards

GB 5725-2009 "Safety Net"
