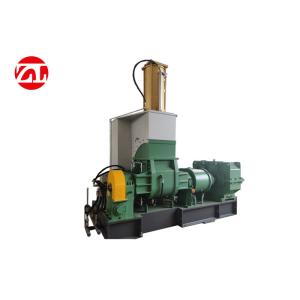

10L Banbury Kneader Mixer Used For Mixing And Plasticizing

Brand Name : ZL

Model Number : ZL-3011C

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : 10L banbury Kneader mixer used for mixing and plasticizing is packaged within wooden case.

Product name : 10L banbury Kneader mixer used for mixing and plasticizing

Main motor power : AC220kw

Rotor speed (front/rear) : 30/24.5RPM

Chamber tilting angle : 130°

Compressed air pressure : 0.6-0.8Mpa

Cooling water pressure : 0.3-0.4Mpa

Approx. weight : 19500kg

Overall dimensions (L×W×H) : 4400×3100×3900mm

Contact Now

10L Banbury Kneader Mixer Used For Mixing And Plasticizing
10L Banbury Kneader Mixer Used For Mixing And Plasticizing
Technical Specifications
Equipment Application and Operation Requirements
  • Main Application: This dispersion kneader is mainly used for plasticating and mixing of plastic and rubber, as well as other variety kinds of polymers
  • Operation Requirements:
    • Running environment: altitude <1000m, temperature: 5℃-40℃, max. relative humidity 95%
    • Power supply: AC380V, 50Hz, 3-phase
    • Cooling water pressure: 0.3-0.4Mpa, Cooling water temperature: <25℃±3℃
    • Compressed air pressure: 0.6-0.8Mpa, Compressed air flow: ≥1m³/min
Main Technical Parameters
Working volume of mixing chamber 150L
Batch feeding type Rear feed
Main motor power AC220kw
Rotor type 2-wing tangential
Rotor speed (front/rear) 30/24.5RPM
Chamber tilting angle 130°
Tilting motor power 11.0kw
Compressed air pressure 0.6-0.8Mpa
Cooling water pressure 0.3-0.4Mpa
Overall dimensions (L×W×H) 4400×3100×3900mm
Approx. weight 19500kg
Supply Range
Main motor 1 set
Gearbox 1 set
Rotor assembly 1 set
Mixing chamber assembly 1 set
Tilting device 1 set
Bedplate 1 set
Frame 1 set
Compound pressing device 1 set
Pneumatic system 1 set
Cooling/heating pipeline system 1 set
Electrical control system 1 set
Items Prepared by End User
  • Power cables from power supply to electrical control cabinet, power cables from electrical control cabinet to kneader main motor and power cables from tilting motor/hydraulic pump motor to electrical control cabinet
  • All pipelines outside rotary joints
Fabrication and Technical Standards
  • Bedplate: Welded by superior U steel and high-quality steel plate
  • Mixing chamber: "W" shape jacket structure, consisting of chamber body and side plates, all welded by superior steel plate through anneal treatment. Inner side walls are hard chromium coating up to 0.10mm thick, hardness around HRC50. Cavity of the jacket could pass through cooling water or heating steam. Plug-in type thermocouple fitted at bottom for monitoring compound temperature
  • Rotor assembly: Rotor shaft and rotor wing blades both through anneal treatment. Rotor wing tips and shearing sides processed and polished, first hard alloy welded, after polishing, hard chromium coating up to 0.10mm thick with whole working surfaces, hardness around HRC50. Rotor shaft with hollow structure for forced cooling or heating. Dust stop system features reliable, long-service-life design
  • Frame: Welded by high-quality carbon constructional steel plate through vibration treatment
  • Main air cylinder: Inner side walls through fine polishing treatment to increase service life
  • Upper ram: "M" shape jacket structure, welded by high-quality steel plate, through anneal treatment and polish processing, hard chromium coating up to 0.10mm thick, hardness around HRC50. Features wear-resistant sealing strip and cooling/heating capabilities
  • Tilting device: Driven by motorized worm & gears with self-locking function at any angle, ensuring reliable and safe operation
  • Main motor: Installation dimension and power grade in line with international standards
  • Hard-tooth gear reducer: Made of 20CrMnTi low carbon alloy steel, through carburizing and quenching treatment, as well as gear grinding process
Key Purchase Parts
Item Description Brand
1 Main motor Liaoning Beilong Motor Group Co., Ltd, first-class OEM in China
2 Gearbox Jiangsu Jintaixin or Kaibo, famous brands for heavy duty gearbox in China
3 Bearings ZWZ, the best brand in China
4 PLC Mitsubishi or Omron
5 Other low voltage electrical parts China, public listed corporation, the best one in China
Product Images
10L Banbury Kneader Mixer Used For Mixing And Plasticizing
10L Banbury Kneader Mixer Used For Mixing And Plasticizing
10L Banbury Kneader Mixer Used For Mixing And Plasticizing
About Zhongli Instrument Technology Co., Ltd
We are Zhongli Instrument Technology Co., Ltd, an instrument expert headquartered in Dongguan, Guangdong, China since 2007, specialized in manufacturing lab testing equipment.
Throughout our more than 14 years of history, our products have sold well in the Europe, America and Southeast Asia markets and total more than 95 countries, especially favored by European and American countries.
In addition to standard machines, our R&D team can customize equipment for you. Just tell us your needs and we will make you satisfied.
